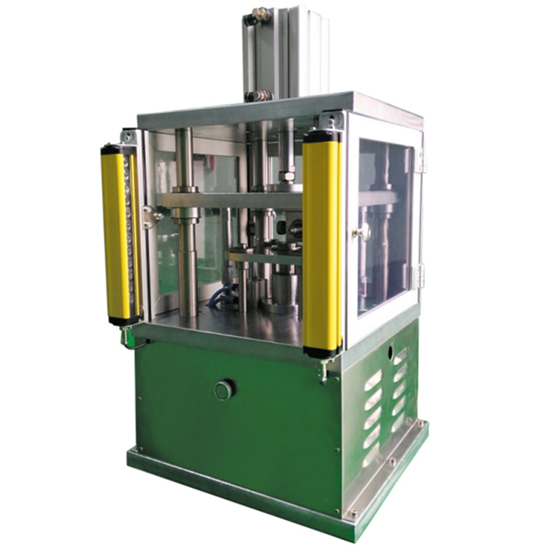

Supercapacitor Electric Sealing Machine for Columnar Super Capacitor Capping

For columnar super capacitor capping of laboratories.

This model suitable for your max super capacitor:D30mm*L50mm



Functional characteristics:

l   Motor-driven spinning and capping principle adopted.

l   Standardized fixtures used for quick replacement of fixtures

l   Reliable capping.high accuracy and uniform size.

l   Accuracy servo motor locating

l   Standardized capping roller.standard configuration(18650,non-standard aluminum cases are customized)



Technical parameter

Model	TMAX-XFK26
Power source	AC220v/50hz
Air source	0.5-0.7Mpa
Standard accessories	Sealing mould for supercapacitor diameter 30mm*length 50mm
Optional accessories	18650,26650,32650,50100......standard aluminum shell mould
Capacity	5-10ea/min(Depending on manual proficiency )
Dimensions	324*352*600(mm). L*W*H
Weight	110kg
