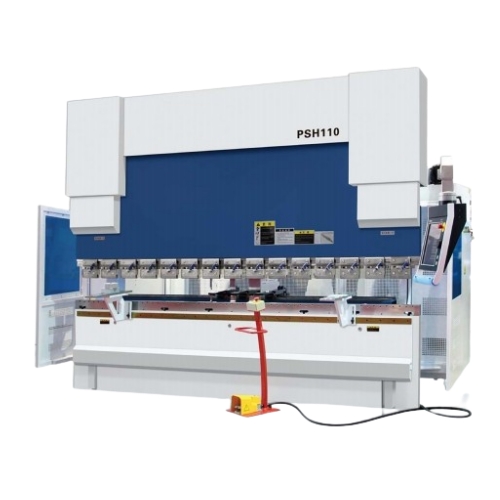

50T Electro-Hydraulic Automatic CNC Press Brakes For Sheet Metal Bending


  • Item NO.:

    TMAX-WE67K-50T1600
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    5 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

50T Electro-Hydraulic Automatic CNC Press Brakes For Sheet Metal Bending


Features

The machine is in an overall welding and overall processing structure, and the main parts of machine are all analyzed by ANSYS finite element analysis software, which has ensured the reliability of machine and the precision of entire machine.

The CNC control system adopts Netherland DELEM, ltalian ESA, or Swiss CYBELEC products, which can achieve the functions of graphic programming for bending angle, compensation for angle amendment, automatic calculation also adjustment of bending pressure, automatic calculation of compensation for workbench distortion, extending length of workpieces, bending pressure for bottom bending,open distance, and automatic withdrawal of rear stopper, etc



Technical parameter

Specification can be customized as your actual needs!

Model

50T1600

80T2500

110T2500

110T3200

110T4000

Nominal pressure (KN)

500

800

1100

1100

1100

Max. Bending width (mm)

1600

2500

2500

3200

4000

Column spacing (mm)

1300

2100

2100

2700

3300

Throat depth (mm)

205

350

410

410

410

Cylinder stroke (mm)

100

200

200

200

200

Die setting height (mm)

540

570

570

570

570

Main power (KW)

5.5

7.5

7.5

7.5

7.5

Oil volume (L)

160

225

225

350

350

Speed (mm/s)

Approaching

230

230

220

220

220

Working

0-15

0-15

0-15

0-15

0-15

Returning

140

140

140

140

140

Dimension (mm)

L

2200

3220

3240

4030

4830

W

1450

1780

1780

1780

1780

H

2155

2650

2680

2680

2780

Weight (kg)

3700

5800

7800

8000

10000
