Item NO.:
TMAX-WC67KPayment:
L/C,T/T,Western Union, PaypalProduct Origin:
ChinaShipping Port:
XiamenLead Time：
5 daysCertificate:

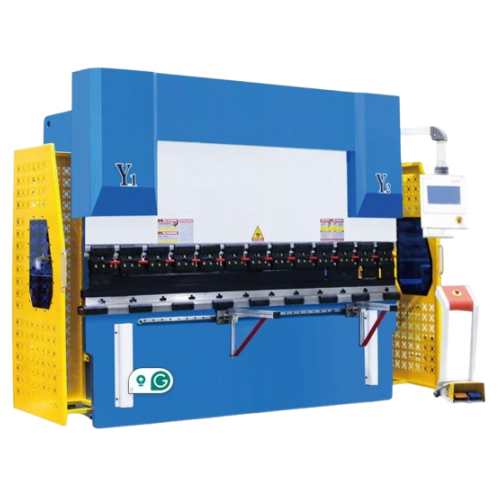

CE ROHS Certificate40T-600T Hydraulic Automatic Torsion-Bar Press Brakes For Sheet Metal Bending
Features
The main machine adopts the structure of series WC67Y hydraulic press brake
High precision,high efficiency CNC Torsion Bar Synchro Press Brakes
Holistic welding structure
Stabilizes left and right balance with help of the mechanical Torsion Bar
Back gauge is drove by servo motor and performance
Ball screw and linear guide
Technical parameter
Specification can be customized as your actual needs!
|
Model |
Nominal force |
Worktable length |
Columns distance |
Throat depth |
Slider stroke |
Max. height |
Power |
Dimension |
|
Unit |
KN |
mm |
mm |
mm |
mm |
mm |
KW |
L*W*H, mm |
|
40T/2200 |
400 |
2200 |
1870 |
230 |
100 |
320 |
4 |
2200*1200*1900 |
|
40T/2500 |
400 |
2500 |
1960 |
230 |
100 |
320 |
4 |
2500*1200*1900 |
|
50T/2500 |
500 |
2500 |
1960 |
230 |
100 |
320 |
5.5 |
2500*1200*2000 |
|
63T/2500 |
630 |
2500 |
1960 |
250 |
120 |
320 |
5.5 |
2500*1300*2210 |
|
63T/3200 |
630 |
3200 |
2600 |
250 |
120 |
320 |
5.5 |
3200*1300*2210 |
|
80T/2500 |
800 |
2500 |
1960 |
300 |
120 |
320 |
7.5 |
2500*1400*2300 |
|
80T/32000 |
800 |
3200 |
2600 |
320 |
120 |
350 |
7.5 |
3200*1500*2300 |
|
80T/4000 |
800 |
4000 |
3160 |
320 |
120 |
350 |
7.5 |
4000*1500*2400 |
