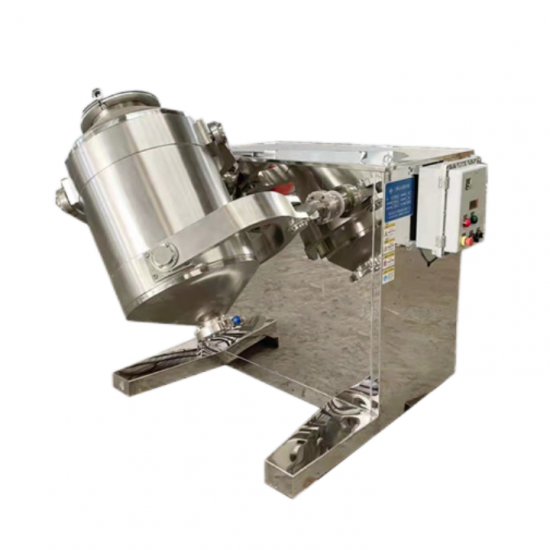

50L 100L 200L 300L Three-dimensional Proof Mixer Machine

3D Explosion Proof Mixer

Introduction

The mixing barrel is inclined at 30 degrees to the horizontal, with smooth operation and no pollution of the material. At the same time as mixing, the balls can be added for grinding, which gives excellent grinding and mixing results. According to the user's requirements, the mixing barrel can be made of stainless steel polished inside and out or lined with corundum, polyurethane, etc.

The three-dimensional mixing machine adopts a structure in which the centre of the barrel is at an angle to the horizontal surface, resulting in irregular movement of the material when working, thus achieving uniform mixing without dead corners.

Application

This machine is suitable for the mixing of a variety of materials, widely used in electronics (lithium cobaltate), ceramics

ceramics, chemical, pharmaceutical, daily chemical, organic and inorganic and other fields.

It is widely used for mixing two or more materials in various fields such as electronics (lithium cobaltate), ceramics, chemical, pharmaceutical, daily chemical, organic and inorganic.

Technical parameters

Model	SWH-50	SWH-100	SWH-200	SWH-300
Volume of mixing drum (L)	50	100	200	300
Max. filling volume (L)	40	75	160	240
Max. loading weight(kg)	40	75	160	240
Spindle speed(rpm)	0-15	0-15	0-15	0-15
Motor power(kw)	1.1	1.5	2.2	4
Dimension(mm)	1000x1400x1200	1200x1700x1500	1400x1800x1600	1400x1800x1600
Weight(kg)	300	500	800	1200

Model	SWH-400	SWH-500	SWH-600	SWH-800	SWH-1000
Volume of mixing drum (L)	400	500	600	800	1000
Max. filling volume (L)	320	420	480	640	800
Max. loading weight(kg)	320	420	480	640	800
Spindle speed(rpm)	0-15	0-15	0-15	0-15	0-15
Motor power(kw)	4	5.5	5.5	7.5	7.5
Dimension(mm)	1800x2100x1950	1900x2100x2100	1900x2100x2250		2250x2600x2600
Weight(kg)	1200	1380	1500	2000	2500
