Name:

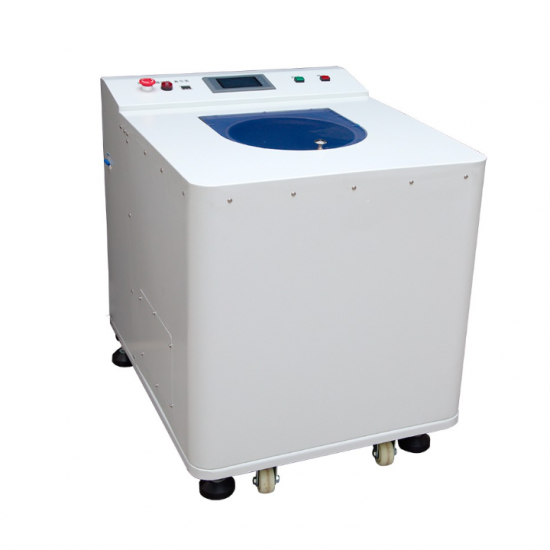

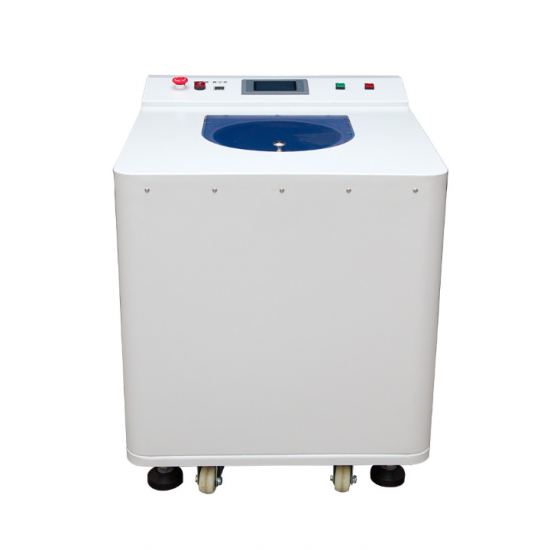

Vacuum planetary gravity mixer (vacuum mixing & defoaming machine)

Model:

ITT-5000S

Usage:

Adapted to the dispersion, mixing and defoaming of multi-component materials (silica gel, multi-component epoxy resin etc.).

Standard container:

5000ML(HDPEφ190*209)

1500ML(HDPEφ130*146)

900ML(HDPEφ104*124)

Non-standard pin can type ink tank φ40.2*313

Maximum handling capacity:

500g~4.5KG*5；≤3000ML*2；

 Revolution:

200~1100rpm Stepless speed regulation, according to the actual needs of users arbitrary input, adjust 1rpm;

Rotation:

Fixed speed ratio 1.1:1;

Setting time:

0~6500S x 5 (five steps in total), accuracy 1s;

Parameter storage capacity:

5 groups;

Vacuum degree:

-100KPa, accuracy 0.1KPa;

Vacuum source:

Built-in two-stage advanced vacuum pump 240L/min (= 4L/sec = 14~16m²/hr);

Absolute value limit pressure (partial pressure 5*10-2Pa and 0.05Pa);

Absolute value limit pressure (full pressure 4*10-1Pa and 0.4Pa);

Vacuum setting:

Vacuum independent switch with vacuum delay function, vacuum degree is adjusted arbitrarily;

Bearing:

Japan NSK bearing;

Control system:

Human-machine dialogue, Chinese and English interface, touch screen operation;

Balance adjustment:

Double-cup configuration balance;

Transmission mode:

Gear transmission;

Principle of operation:

Revolution and rotation wingless centrifugal gravity way;

Alarm device:

Running top cover uncovered detection;

Safety protection:

Locking of the upper cover during operation and stopping of work when the upper cover is opened;

Applicable temperature and humidity:

10~40 ℃; 20~80%RH (no thick foggy moisture, that’s enough);

Voltage:

AC220V±5%; 1-Phase; 50~60Hz;

Voltage:

Main machine rated power 2000w including vacuum pump;

External dimensions:

L840×W670×H860mm；

Main machine weight:

190Kg；

Equipment Features:

Revolution and rotation up to produce nearly 400G centrifugal gravity, strong dispersion and defoaming; no spiral blade, to achieve mixing and dispersing in the container; no cleaning, will not contaminate the material; does not damage the material (especially fibrous materials) traits; human-computer interaction, easy to operate; ultra-small, ultra-lightweight, ultra-quiet optimized design.
