X-RAY Testing Device for Internal Defect Detection for Battery Industry

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-YK-XG5010
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    5 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

X-RAY Testing Device for Internal Defect Detection for Battery Industry



Equipment Introduction

1.1 Application area

The equipment is mainly used for the observation of internal defects of products in the battery industry, semiconductor parts production, electronic product processing, solid substrate, electronic product packaging, power supply and other industries.

1.2 Introduction to equipment functions and principles

The equipment emits X-rays through the X-ray generator and penetrates the inside of the tested object. The image intensifier receives the X-rays and takes images and photographs. The defects of the tested object are determined manually according to the images.



Main Parameters:

Item

Details

X-RAY  Voltage

Max 90 kV

X-RAY  Current

Max 200uA(Software limit value:Max:89uA

Warranty period of X-ray tube

Accumulated warranty time6000h

Image intensifier

4 "image intensifier

 Imaging system resolution

75/110  lp/cm

Warranty period of booster

Accumulated warranty time6000h

Number of imaging systems

1set

X-CCD

≥1.3 million pixels

Repeat test accuracy

±0.06mm(Standard sheet measurement

Equipment utilization rate

≥98%

Stage size

510mm X 460mm

Effective detection range

450mmX410mm

 X Radiation leakage

≤1.0 μSV/hRadiation dose tester certified by a third party shall be used

Computer configuration

Advantech, i5 processor, 4G memory, 1TB hard disk, 21.5-inch display

Detection method:

Offline measurement mode, automatic navigation, manual observation and manual judgment


Equipment component description

3.1 Micro focus X-ray generator and control system;

3.2 X-ray detection imaging system;

3.3 X-ray protection box;

3.4 Electrical control system;

3.5 Control PC and image processing;

3.6 Automatic power-off protection device;

3.7 Three color light equipment status reminder;

3.8 Photoelectric induction control device;

3.9 The metal plate and perspective window of the whole machine are embedded with lead plate to ensure radiation safety and prevent radiation leakage;

3.10 Navigation device;

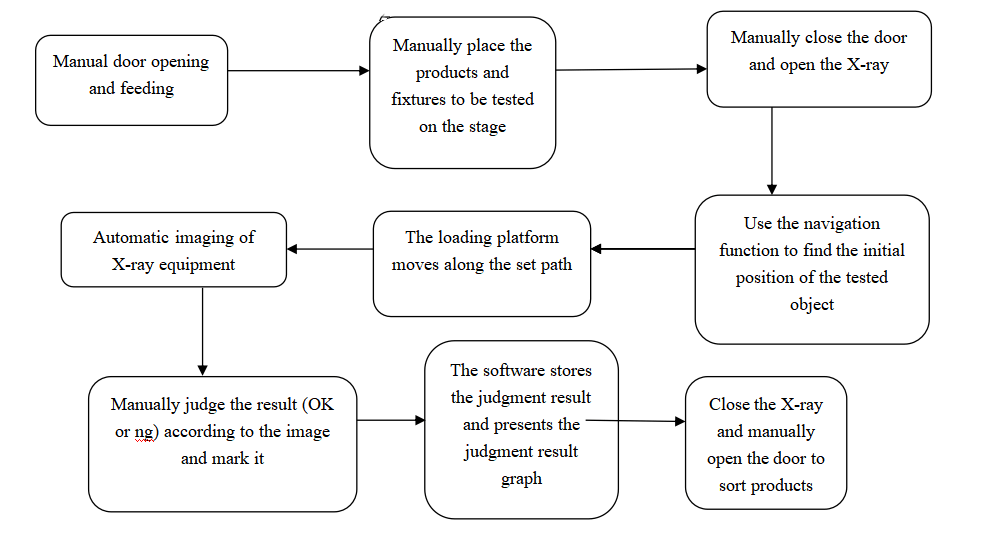

Process operation process requirements


General configuration and standard of equipment

5.1  Equipment appearance color: warm gray 1C (or subject to the customer's color plate).

5.2  Measured 1m away from the equipment (operation position), the equipment noise is ≤ 75db.

5.3  The equipment complies with the safety standards of China for electromechanical equipment.

5.4 SizeL1200mm×W1100mm×H1830mmThe specific size shall be subject to the actual object

5.5 Total weight760KG

5.6 Ambient temperature25±3

5.7 Ambient humidity: ≤ 60% RH (no condensation)

5.8 Power2.5KW
