Vacuum Glove Box for Supercapacitor Development and Production

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-XY-SC
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    5 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

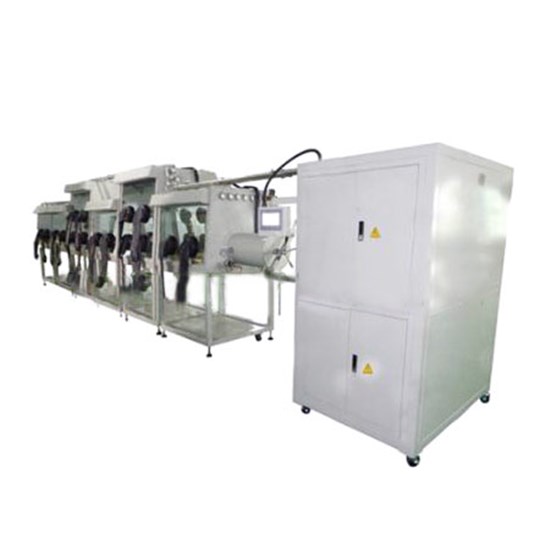

Vacuum Glove Box for Supercapacitor Development and Production




Overview:

Present stage super capacitor development and production is gradually to higher technology areas of development,so the work environment requirements are quite high, which glove box configuration super capacitor production line capacity to meet user needs, with a dedicated, high efficiency and other advantages.


Working principle:

Case and purification system to form a closed space, inward injection of inert gas (nitrogen, argon, helium) making cycle, thereby removed the box of the active substance, to achieve the ideal of noble, high purity environment(water 、oxygen ≤lppm).


Technical Parameters:

H2O、  O2

≤lppm

The leak rate

≤0.05Vol% h (monthly leakage of oxygen <1L)

Foreline vacuum degree

0 ~ -0.1MPa (2.5-stage vacuum table)

Case vacuum degree

0 ~ -0.1MPa (2.5-stage vacuum table)

Transfer chamber can withstand

vacuum degree ≥100Pa

Working gas

nitrogen, argon, helium (purity 99.5%)


Features:

1 .Configuration internationally renowned brand components.

2.Water, oxygen index of less than 1ppm.

3.Excellent sealing performance, easy to replace.

4.Unique design, lightweight, tight structure, easy operation.

5.Pneumatic automation control, testing, production, reduction.

6.The color touch screen, man-machine dialogue.

7.Foot Switch: the pressure inside can be adjusted by foot switch.

8.English user interface (customer choice).

9.Cabinet material using SUS304 (3mm) stainless steel.

10.Sound technical services.


Widely used:

1.Super capacitor development and production.

2.The pharmaceutical industry.

3. Fine Chemicals.

4.The polymeric material.

5. The special welding.

6. Physical chemistry research.

7. The catalyst study new materials research.

8.The semiconductor technologies.

9.Lithium battery research and production

10.The development and production of special lights.

11.OLED and PLED.

12.Research on nuclear technology.
