Item NO.:
TMAX-BY-ZD07Payment:
L/C D/A D/P T/T Western UnionShipping Port:
Xiamen PortLead Time：
5 daysCertificate:
CE Certified

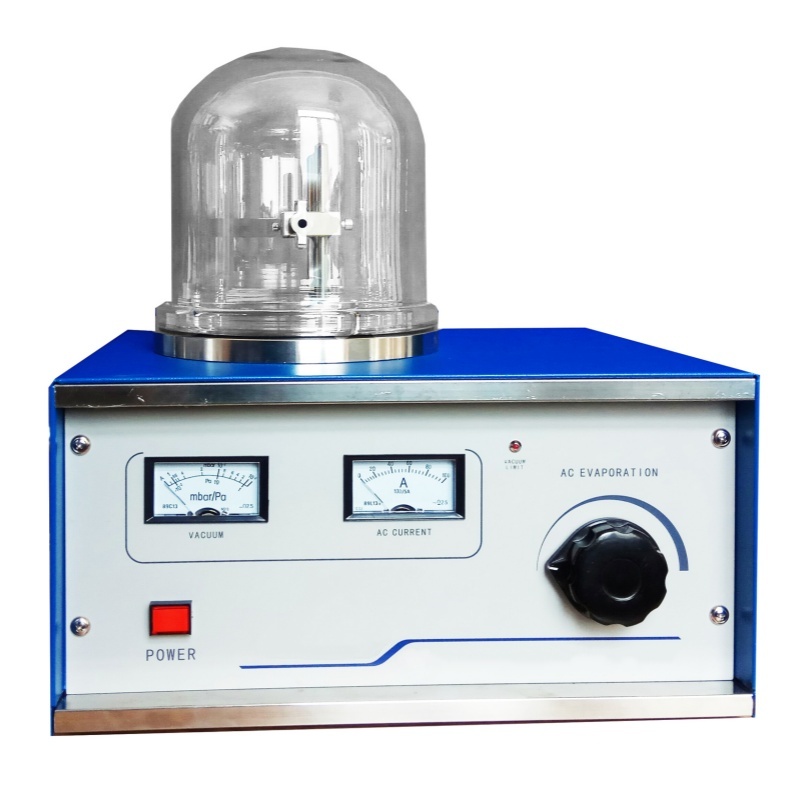

TEM&SEM Manual Thermal Evaporation Evaporator Machine For Carbon, Ag, Cu Deposition
TMAX-BY-ZD07-Manual Thermal Evaporation For TEM&SEM
The TMAX-BY-ZD07 Thermal Evaporation Coater employs a heating process to evaporate coating materials, which then deposit onto substrates to form thin films. Designed for electron-beam-sensitive and non-conductive samples, it is ideal for protective coating and SEM sample preparation to enhance imaging quality and mitigate charging effects.
|
Parameter |
Specification |
|
Target Material |
Carbon Rod |
|
Control Mode |
Manual |
|
Chamber Dimensions (D×H) |
170 mm × 200 mm |
|
Sample Stage Diameter |
170 mm |
|
Sputtering Gas |
Vacuum |
|
Evaporation Current |
Max: 100 A; Operating: 0–80 A |
|
Operating Vacuum |
2×10⁻² mbar |
|
Working Voltage |
220 V, 50 Hz |
|
Pump |
High-performance Leap Pump (2 L) |
1. Efficient Deposition – Rapid thermal evaporation process ensures quick film formation.
2. Versatile Applications – Compatible with:
·Electron-beam-sensitive samples (e.g., biological, polymeric materials) to prevent structural damage.
·Non-conductive samples – Eliminates charging effects in SEM by providing a conductive metal layer.
·New materials research – Facilitates electrode fabrication for conductivity studies.
3. Compact & Reliable – Features a high-quality vacuum pump and user-friendly manual operation.
· SEM sample preparation (metal coating for improved signal-to-noise ratio).
· Protective coating for delicate materials.
· Experimental studies on conductive properties of novel materials.
