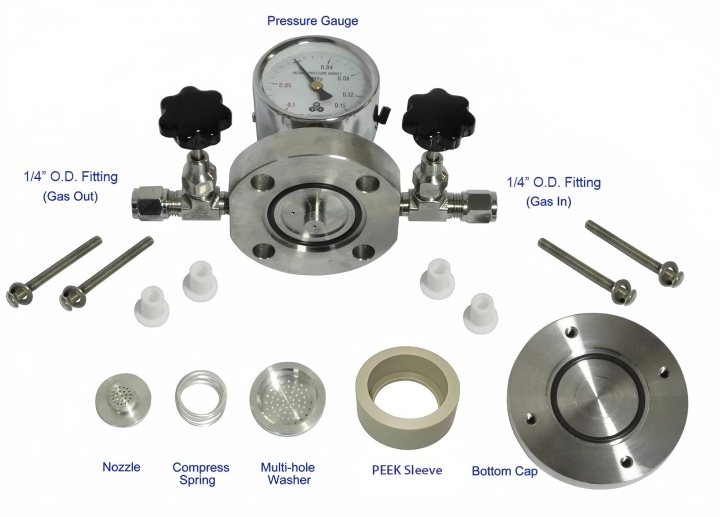

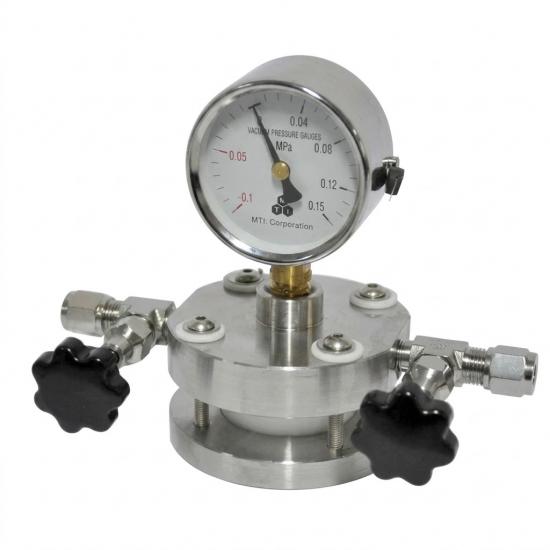

Split Test Cell for Lithium Air Battery Research
The EQ-STC-LI-AIR is a Split Test Cell for Lithium-Air Battery Research.
Specifications
|
· SS304 steel Structure with internal Silver-Clad surface treatment ensures high electrical conductivity and good corrosion protection
· Two electrodes design
· Electrolyte corrosive-proof PEEK Guide Sleeve and Sealing O-rings
· The compact design fits in any benchtop glove boxes |
|
|
Cell Thickness |
· 1~3mm (cathode + separator + anode) |
|
Bottom Recess Area |
· 20 mm Diam. |
|
Max. Working Temperature |
· 200°C (The default PEEK sleeve works well in this temperature range) |
|
Pressure Gauge |
· Mechanical pressure gauge with a display range from -0.1~0.15Mpa |
|
Valves & Fittings |
· Two Stainless Steel needle valves with 1/4" O.D Tube Fittings |
