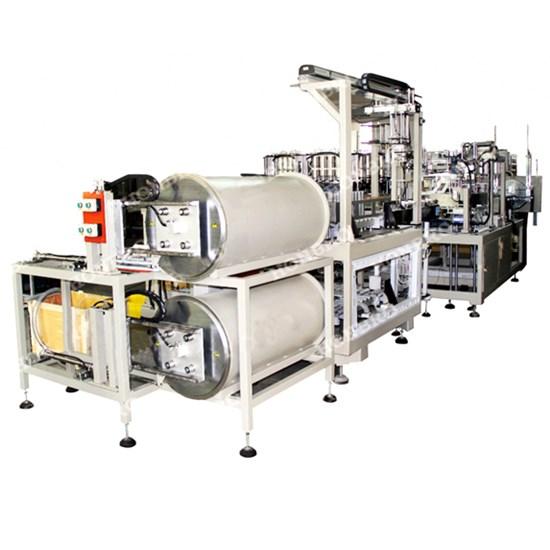

prismatic EV-battery  Automatic filling machine

Functions
● It is used to EV-battery auto filling. To finish auto battery feeding, battery cooling storage, insulation resistance test, scan code & weight, NG sorting before filling, auto filling, auto recycle and keep holding, NG sorting & collection after filling, re-filling NG battery, wipe the filling hole & the stopper by manual, into transfer tray, auto go to interim chamber.

Features
● The battery tray auto feeding, battery cooling storage 1 hour
● Filling cup double layers design, blocking rod steel seal, easy to clean, the blocking rod & seal head can be used recycle.
● Equip Picking up liquid trough to avoid the residual electrolyte polluting equipment.
● Auto electrolyte mixing system, remove air bubble, avoid dropping electrolyte
● Auto clean system to clean filling pump & cup regular

Technical Parameters(for reference)：

ITEM	MAIN PARAMETERS
Dimension	L x W x H ≈5000x2450x1800mm
Weight	About 4.5T
Power supply	AC380V/50HZ, 7.5KW
Air source	≥0.6Mpa, 30L/min
Vacuum source	≤ -0.09Mpa, 40L/S
Applicable battery range	H 100-240, W 100-180, T 10-50mm
Capacity	≥4.5PPM(Holding time 15mins, filling volume ≤300g)
Action	≥98%
Filling volume	0-500g, adjust
Filling precision	L x W x H ≈5000x2450x1800mm
Weight precision	About 4.5T
Dimension	AC380V/50HZ, 7.5KW
