Pouch Cell Automatic Aluminum Laminated Film Forming Machine

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-pouchforming
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    5 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

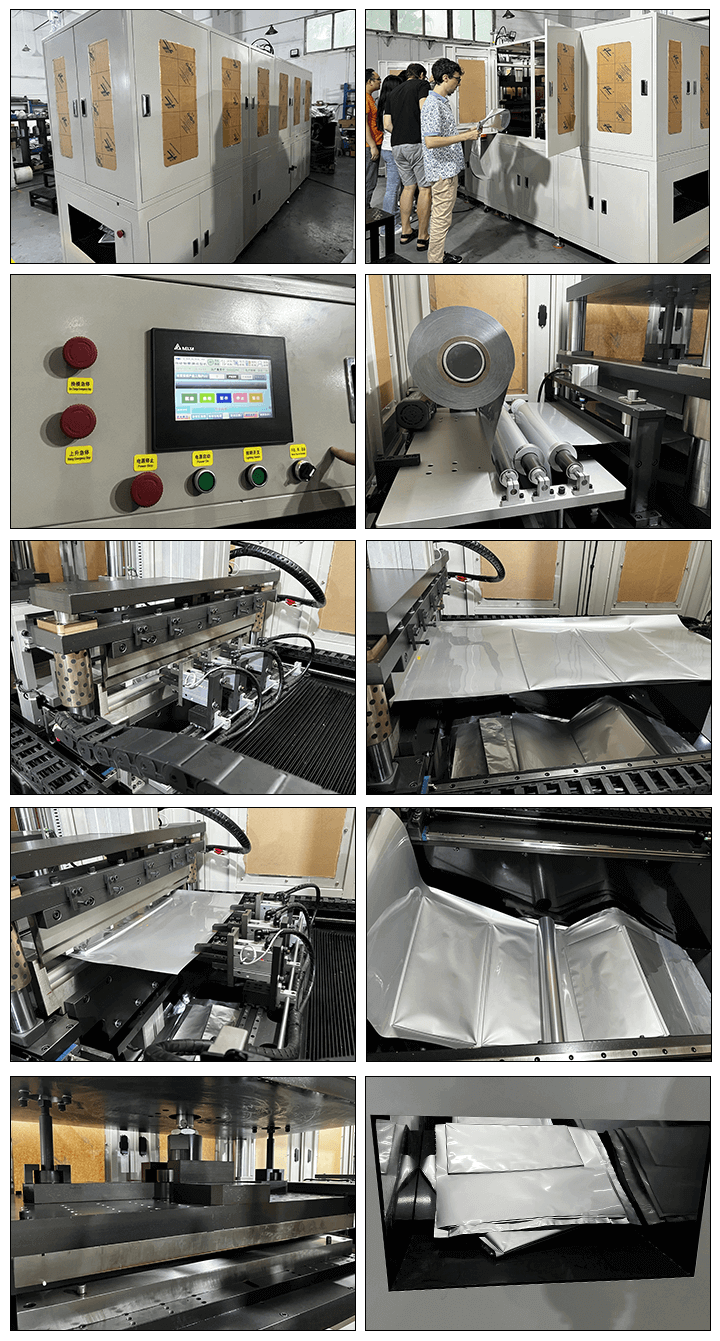

Pouch Cell Automatic Aluminum Laminated Film Forming Machine



Main technical parameters

TMAX-AP001

TMAX-AP002

Size(L*W*H)

700*2250*1860mm

1000*3800*1900mm

Weight

870kg

1200kg

Applicable aluminum-plastic film area

Max:380*200mm

Max:600*350mm

Thickness of aluminum film

0.11-0.2mm

0.11-0.2mm

Depth of stamping pit

Single pit<6mm

Single pit<6mm

Speed of stamping shell

200-450pcs/H

100-240pcs/H

Cylinder pressure

10T

30T

Stamping mode

Air cylinder

Servo

Power source

AC220V 0.5KW

AC220V 3.8KW

Gas supply

0.6-0.7Mpa 40L/S

0.6-0.7Mpa 40L/S

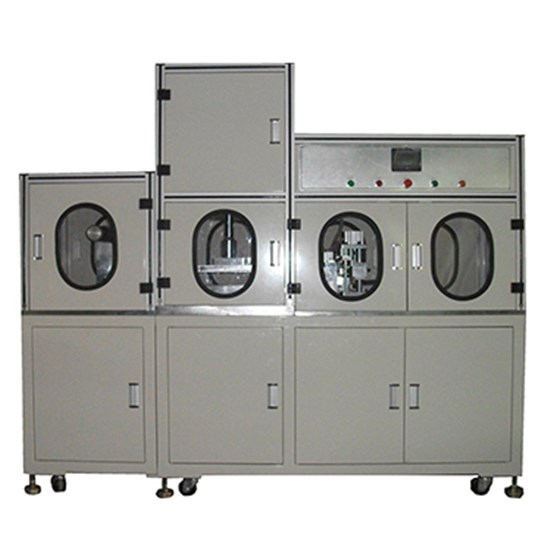

aluminum laminated film forming machine
