NMC622 Single-Sided Coated Cathode Electrode Sheet

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com

Item NO.:
TMAX-Electrode-21
Payment:
L/C,T/T,Western Union, Paypal
Lead Time：
2 days
Certificate:
CE ROHS Certificate

Inquire Now

Product Detail

NMC622 Single-Sided Coated Cathode Electrode Sheet

Material Name:Single-Sided Coated NMC622 Cathode Electrode Sheet (Lithium Battery Cathode Material)

Specification:241 mm L × 200 mm W

Application:Lithium-ion Battery Cathode Material

Item No.:01011901

Packaging:5 sheets/package

Main Parameters

Item	Parameter
Electrode Sheet Size	241 mm L × 200 mm W
Coating Area Size	241 mm L × 175 mm W (uncoated margin: 12.5 mm on both sides)
Coating Surface	Single-side coating (calendered)
Current Collector Thickness	16 μm
Active Material Loading	11 ± 0.20 mg/cm²
Electrode Density	2.9 ± 0.1 g/cm³
Areal Density of Electrode	1.22 mg/cm²
Active Material Content	97.5%
Voltage Range	3.0–4.3 V
Reference Specific Capacity	170 mAh/g (0.1C)

Notes:

1. The active material content is based on the actual measured value. The capacity calculation below is based on the active material content.

2. After opening the package, please store the electrode sheets in a dry environment. They can be stored in a vacuum oven or at 60°C drying conditions.

Packaging and transportation

Packaging material: cardboard box.

Packaging method: Vacuum sealed packaging.

Pay attention to moisture-proof, waterproof, and light proof storage.

Transportation requirements: prevent collision, compression, moisture, sun protection, and damage.

Storage environment(electrode packaging in sealed state)

Temperature: -40 ℃~60 ℃

Relative humidity: 75% RH Max

The shelf life: 12 months.

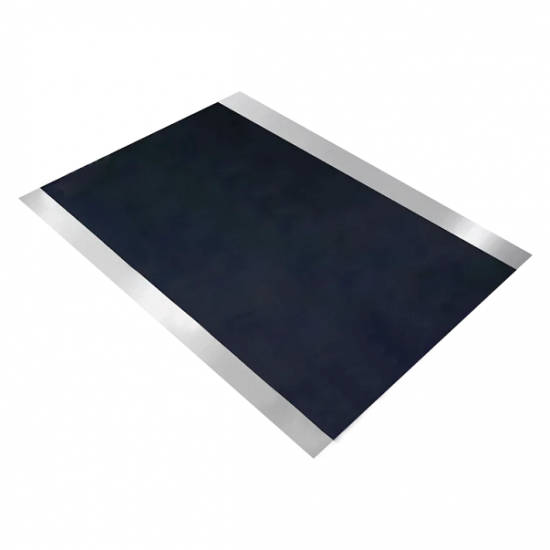

Product Display：
