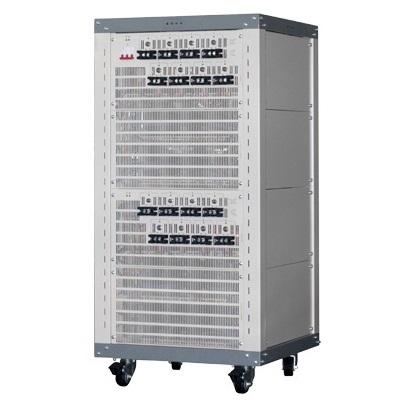

Neware 5V 100A 2/4/8/16 Channels Prismatic Cell Charging and Discharging Machine

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com

  • Item NO.:

    BTS-5V100A
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Lead Time:

    5 days
  • Certificate:

    CE, IOS, ROHS, SGS, UL Certificate
  • Product Detail

Neware 5V 100A 2/4/8/16 Channels Prismatic Cell Charging and Discharging Machine



Introduction:

*Power battery simulation, C-rate test.

*Life cycle test.

*Power test, capacity test, energy density test.

*Power battery virtual distribution: charge/discharge curve fitting, battery consistency test and evaluation.

*High rate charge/discharge test.

*Power battery, serial energy-storage battery module test: single cell voltage, Single cell temperature monitoring(high-voltage equipment).


Features(some features required a customization):

*High-performance charge/discharge test platform developed for high-power battery modules(or packages).

*Adopting AC/DCDC/DC Dual-level high frequency module design, combined with low temperature drift, high-performance multi-channel 24-bit analog-to-digital conversion chip(ADC) to achieve higher stabilize accuracy.

*High-level power density system with multi-channel integration and capable for energy recovering.

HMI operation, smart calibration.

*Multiple adaption for BMS, supports the same/different charge and discharge ports, relay/MOSBMS solution, independent CAN and RS485 communication expansion, and DBC configuration.

*Remote control available for host computer through Ethernet, channels parallel, pulse and driving simulation available.

*Man-computer integration interface design, minimized system for easy-understand operating, customized setting available, automatic reminder for termly calibration.


Project Index

Parameter Index

Input AC Power

AC 380V ±10% / 50Hz

Input Impedance

100KΩ

Input Power

14177W

Resolution

AD:16bit;DA:16bit

Channel Features

Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure

Channel Control Mode

Independent Control

Voltage

Each Channel Voltage Range

0.025mV~5V

Ll

Lowest Discharge Voltage

2V



Accuracy

± 0.1% of FS



Stability

± 0.1% of FS

Current

Each Channel Current Range

Range :0.5A~100A



Cut Off Current

0.2A



Accuracy

± 0.1% of FS



Stability

± 0.1% of FS

Power

Each Channel Max. Output Power

500W



Stability

0.2% of FS

Time

Current Rise Time

The current gets to (10%-90%) hardware rise time is 20ms



Step Time Range

1sSingle Step Time Range365*24 h

Support Time Form: 000000:00(hminsms)

Data Recording

Record Condition

Min. Record Time:100ms





Min. Record Voltage:10mV





Min. Record Current:200mA



Record Frequency

10Hz

Charge

Charge Mode

Constant Current ChargeConstant Voltage ChargeConstant Power ChargeConstant Current and Constant Voltage Charge



End Condition

VoltageCurrentRelative TimeCapacityRelative Voltage

Discharge

Discharge Mode

Constant Current DischargeConstant Power DischargeConstant Resistance Discharge



End Condition

CurrentVoltageRelative TimeCapacityRelative Voltage

Cycle

Loop Measure Range

1~65535 times



Max Steps Per Loop

254



Nested Loop

Nested loop FunctionMax Support 3 Layers

Pulse Model

Charge

Constant CurrentConstant Power



Discharge

Constant CurrentConstant Power



Min Pulse Width

200ms



Pulse Number

Single Pulse Step Support 32 different Pulse



Charge r To Discharge

One Pulse Step Can Support Continuous Charge And Discharge Change



Stop Condition

VoltageRelative Time

DCIR Testing

Support Custom Access Point And Count The DCR

Channel Parallel

Support Channel Parallel4 channels max,Under Parallel Without Pulse Function

Protective Function

Software Protection

Power-down Data Protection





Off-line Testing Function





Setting Protection ConditionSetting ParameterLow Voltage LimitUpper Voltage LimitLow Current LimitUpper Current LimitDelay Time



Hardware Protection

Additional Anti-reverse Protection Model

Data Output

EXCELTXT

Communication Interface

Ethernet Port

No. Of Channels Per Unit

16

Dimensions (W*D*H)

600*600*1780(mm)
