Item NO.:
TMAX-MDA-8000APayment:
L/C,T/T,Western Union, PaypalProduct Origin:
ChinaShipping Port:
XiamenLead Time：
5 daysCertificate:
CE ROHS Certificate

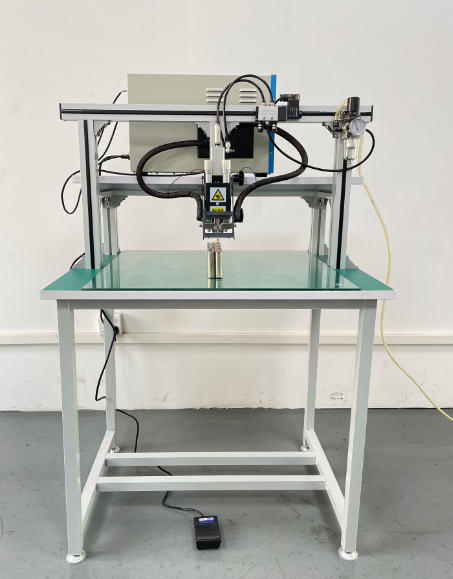

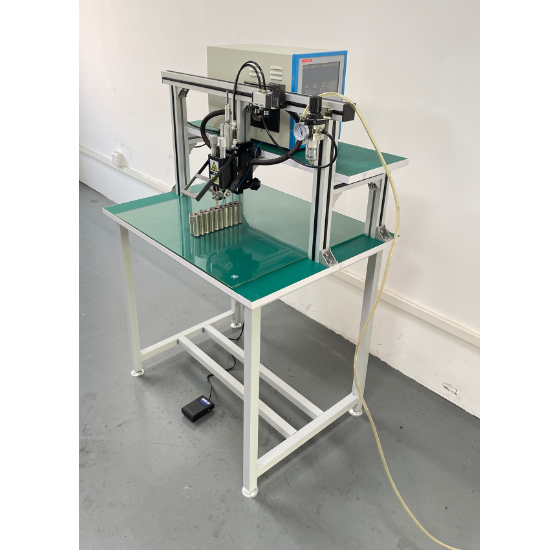

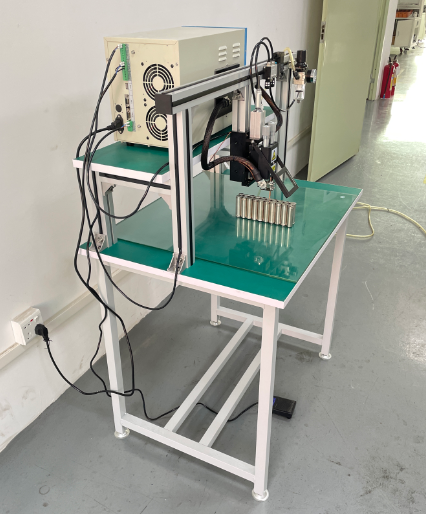

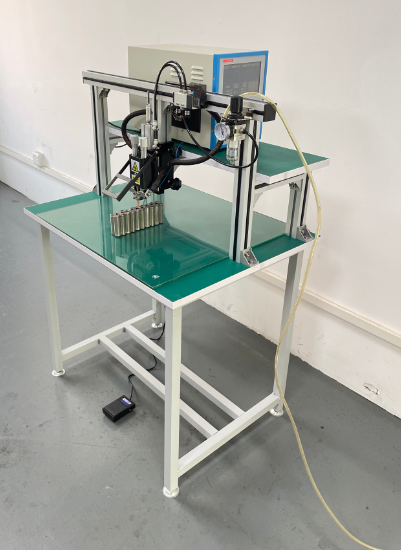

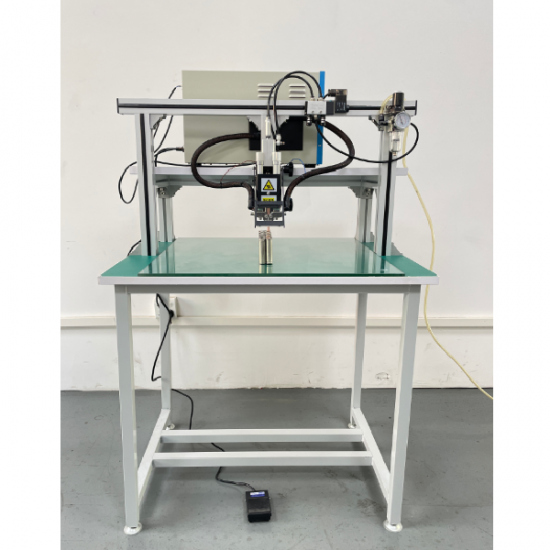

Manual Spot Welding Machine with 8000A Transistor Welding Power Supply for Nickel Strips Welding
Introduction:

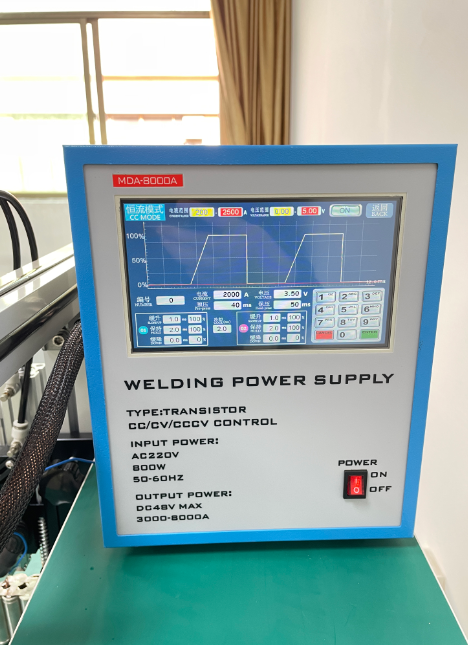

Transistor welding power supply is a high-precision, high-speed and high current transistor welding power supply that performs high-speed switching through the power switch tube and performs closed-loop feedback control on the voltage and current between welding electrodes collected in real time.
Main Function:
Cylindrical battery, Prismatic battery, Polymer battery Pneumatic spot welding with nickel sheet .
Product description:
1.The welding power supply adopts transistor switching mode, which can realize small and high-efficiency and high output precision welding.
2.The machine adopts three welding methods:
Constant voltage welding:Control the voltage between electrodes, the current is small, and spark will be reduced during welding;
3.Constant current welding:Through a certain amount of current, it has nothing to do with the resistance of the workpiece and can be welded stably;
4. Constant voltage and current welding:Welding is controlled by setting current and voltage at the same time.
5.Output current direction:
6.MDA-8000B current flows from the positive to the negative (unipolar welding), which is mainly suitable for power batteries;
Specification:
|
Supply voltage |
Single phase :AC100V- 120V or AC200V-240V 50/60Hz |
|
Spot welding power |
MDA-8000B Transistor spot welding power |
|
Welding output power |
Max 8000A |
|
Nickel strip thickness |
0.06-0.2mm nickel plated or pure nickel strip
0.21-0.4mm nickel strip requires bump welding |
|
Working way |
Pneumatic welding |
|
Welding platform |
L600mm*W300mm |
|
Parameter setting |
Touch way |
|
Power at 0.1% duty cycle |
SQ1=9KVA |
|
Power at 50% duty cycle |
S50=0.36KVA |
|
Communication interface |
RS485, RS232 |
|
Canonical storage quantity |
16 group |
|
Cooling mode |
Forced air cooling |
|
Relative temperature |
- 10-55C |
|
Machine Size |
L900*W900*H1350mm |
|
Welding power supply weight |
About 50kg |
