  • Product Detail

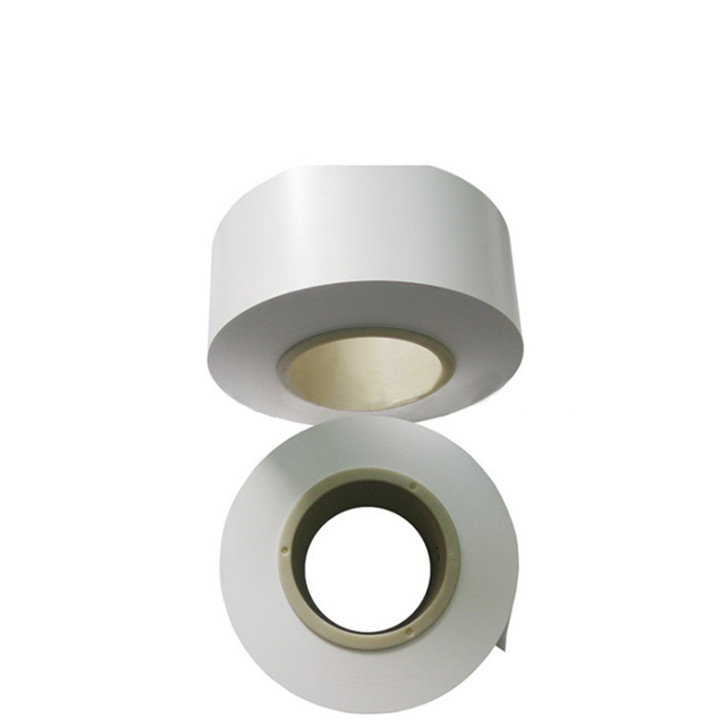

Li-Ion Battery Separator Film


Universal type battery separator paper PP/PE

Product Name: lithium-ion battery separator
Appearance: Milky white porous films
Function: Used in separating lithium ion battery cathode and anode,to prevent short circuit


Product characteristics:
1.Uniform pore size distribution
2.Low obturator temperature
3.High film rupture temperature

Application: Communications products battery,Tool Battery.


Safety performance(After manufacturing battery)


NO.

Item

Criteria

Remarks

1

Vibration test



No fire,noexplosion

2

Drop Test



3

Short circuiting Test

100(o)

4

High temperature test

7 days

No fire, no explosion Capacity≥80%C5

5

Heating Test

130*10min

No fire,noexplosion

6

Overcharge testing(NO PCM)

3C 4.6V

7

Storage Characteristics



Remaining Capacity≥85%
