Laboratory NMP Solvent Recovery Unit (8000M³/H) for Prismatic Cell Production Lines

Configuration List

Component Name	Model	Quantity	Remarks
NMP Solvent Recovery System	TMAX-8000SL-I	1 set	Recovery Rate: 99% ±3% Recovery Concentration: ≥80% Purification Concentration: ＜50 mg/m³
Built-in Spray Tower	TMAX-PLT	1 set
Cooling Water Tower	TMAX-30T	1 set
Liquid Storage Tank	TMAX-CYG	1 unit

System Principle

This system is designed to recover N-Methyl-2-pyrrolidone (NMP) from exhaust gases generated by lithium-ion battery coating equipment. It operates with low energy consumption, utilizing circulating water for gas cooling and incorporating a demisting process prior to emission. The resulting emission concentration is significantly lower than national regulatory standards, ensuring adherence to environmental requirements while enabling energy conservation and material recycling.

Application

TMAX Series systems are designed for the lithium ion battery industry, particularly for handling NMP exhaust during the coating process.

Features

· Combines water-cooling and spraying for efficient NMP gas treatment and purification.

· Simple operation with clear indicators.

· Modular design, easy to disassemble for maintenance.

· Efficient recovery, yielding high economic benefits for users.

Technical Specifications

Parameter	Specification
Organic Compound Emission Level	＜50 mg/m³
NMP Recovery Rate	99% ±3%
NMP Recovery Concentration	≥80%

Environmental Requirements

· Ambient Temperature: +10~+40℃

· Relative Humidity: 20~90%

· Altitude: <1000 m

· Exhaust Gas Temperature: <120℃

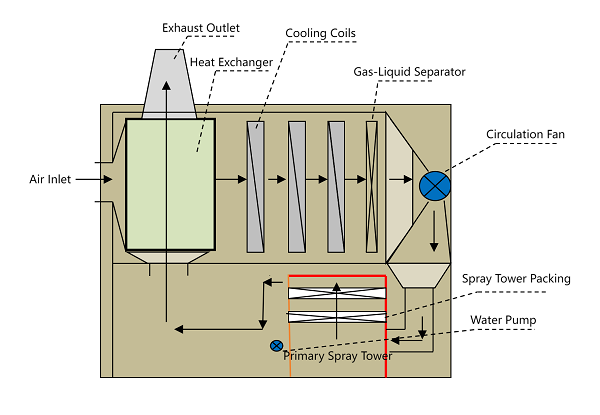

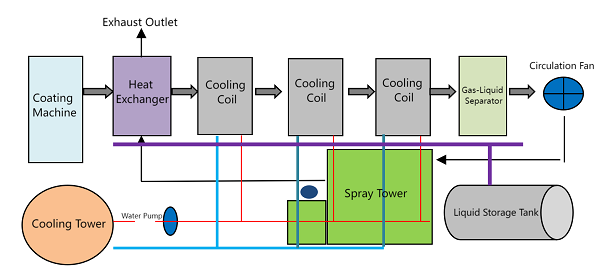

Machine Layout

Key Component Specifications

No.	Assembly	Part Name	Material	Size/Model	Manufacturer
1	Main Unit	Heat Exchanger	Aluminum Tubes	800×800×350	TMAX
2-4	Main Unit	Fin Cooler	Copper & Aluminum	800×800×200 (×3)	ASD
5	Main Unit	Gas-Liquid Separator	304 SS	800×800×50	TMAX
6	Main Unit	Induced Fan	Stainless Steel	3kW	Aozhong/Xinfeng
7	Main Unit	Casing	201 SS	1.5mm	TMAX
8-9	Outer Frame	Structural Parts	201 SS	50×50×3 / 1.0mm	Hongercheng/Dahua
10	Spray Tower	Tower Body	201 SS	1200×1000×1700×1.5mm	Hongercheng/Dahua
11	Spray Tower	Packing	304 SS	800×800	TMAX
12	Spray Tower	Nozzle	316 SS	DN10	TMAX
13	Water Pump	Circulating Pump	Anti-corrosive	1.5 kW	Yuanli
14-15	Cooling System	Cooling Tower / Fan	Fiberglass / Cast Iron	30T / 1.5kW	Liangyuan
16	Cooling System	Circulating Pump	Anti-corrosive	2.2 kW	Yuanli
17	Liquid Storage	Drainage Pipe	Aluminum-Plastic	2.0	Zeke
18	Liquid Storage	Storage Tank	201 SS	1.5T	TMAX

Control System Configuration

No.	Item	Model	Qty	Brand
1	Air Switch	4P/32A	1	Chint
2	Single Pole Switch	1P/10A	2	Chint
3	AC Contactor	1210	3	Chint
4	Thermal Relay	4A/6A	3	Chint
5	Indicator Light	Red, Green	2	Chint
6	Selector Switch	NP2	2	Chint
7	Fuse	6A	1 set	Chint
8	Thermostat	18/H	2	Chint
9	Alarm Light	Ad16-22sm	1	Chint
10	Control Cabinet	400×500×200 / 400×400×1500	1 each	Chint
