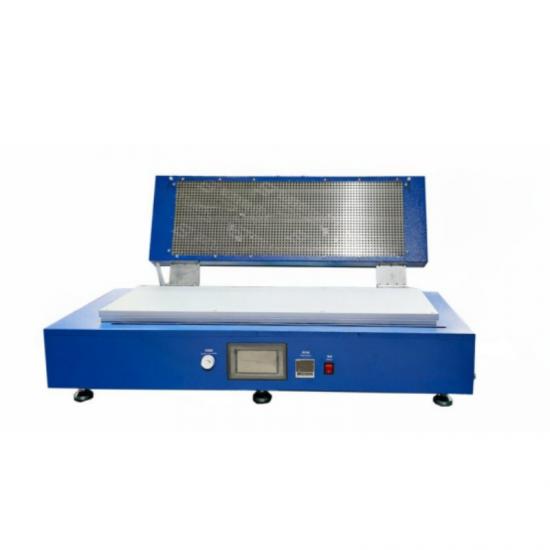

Laboratory Automatic Doctor Blade Coating Machine with Drying Cover& Vacuum Function

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com

  • Item NO.:

    TMAX-TMH800

  • Payment:

    L/C,T/T,Western Union, Paypal

  • Lead Time：

    5 days

  • Certificate:

    CE ROHS Certificate
Inquire Now
  • Product Detail

Laboratory Automatic Doctor Blade Coating Machine with Drying Cover& Vacuum Function



The automatic coating machine is widely used in high-temperature coating research, including ceramic films, crystal films, battery material electrode, and specialized nano-films. It is designed to support scientific advancements in film formation under high-temperature conditions.


Key Features

· Adjustable coating speed ranging from 0 to 100mm/sec.

· Digital temperature-controlled drying system, with a maximum working temperature of 150°C.

· Adjustable stroke range between 10mm and 800mm, controlled by a travel switch.

· Vacuum aluminum plate, enabling quick placement and removal of substrates.

· Equipped with an adjustable film applicator for precise coating control.


Technical Specifications

Parameter

Specification

Coating Speed

0-100 mm/sec (adjustable)

Maximum Stroke

800mm

Vacuum Plate

Equipped with a vacuum aluminum plate

Vacuum Plate Size

865mm (L) × 200mm (W) × 30mm (H)

Blade Adjustable Range

0.01 - 3.5mm

Heating & Drying System

Room temperature to 150°C, digital temperature controller, accuracy ±1°C

Power Supply

220V / 50Hz

Machine Weight

100kg

Machine Dimensions

900mm (L) × 310mm (W) × 930mm (H)


Film coating machine





Coin Cell fabrication
