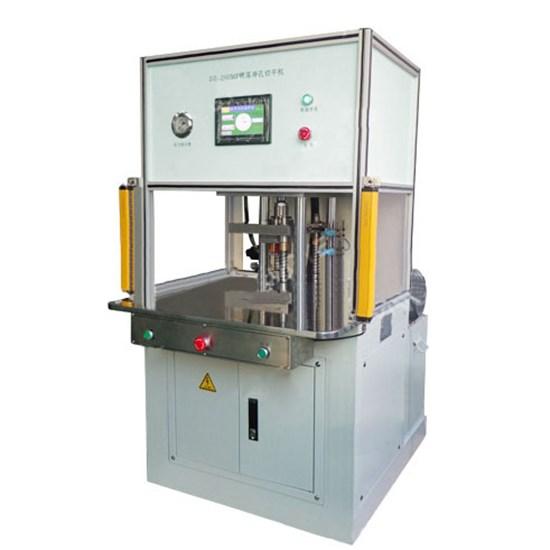

Lab Supercapacitor Case Shaping Machine

1. Functional overview

Suitable for case shaping of cylindrical supercapacitor.



2. Functional characteristics

1.PLC control, touch screen operation interface, easy to enter each function.

2.Parameters in the process of production can be recorded in data memory.

3.Provide manual and automatic operation modes.



3. Technical parameters

Power source	AC220V/50Hz
Air source	0.4~0.7MPa
Shell specification	φ60mm x (100~150)mm
Pressure holding time	1s~10s
Nominal pressure	30kN
Positioning accuracy(H)	±0.02mm
Shaping height error(H)	±0.05mm
Overall dimensions (LxWxH)	1100x1200x2100mm
