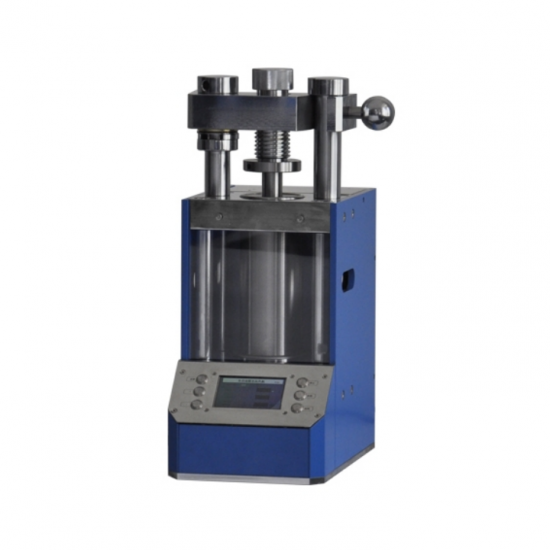

Lab 40T Automatic Programmable ClP Press with Plexiglass Doors





















Instrument type	PP-40J
Pressure range	0-40T
Piston diameter	Chrome plated cylinder Φ130mm(d)
Pressurization process	Common or connected multi-section pressure and can display pressure curves
Holding time	1 s to ∞ s
Pressure conversion	The program automatically converts the pressure of the sample
Liquid crystal display	7 inch (IPS HD) touch screen
Equipment protection	Steel plate protection with plexiglass doors
Isostatic pressure	300MPa
Isostatic pressure chamber	Φ 40 x150mm (MXN)
Cylinder stroke	50mm(T)
Sample preparation characteristics	Upper board rocker arm structure, more convenient operation
Overall dimension	280x460x660(LxWXH)
Equipment power supply	550W(220V/110 can be customized)
Equipment weight	180Kg
Powder tablet press size diagram
