Operation interface (Manual mode)

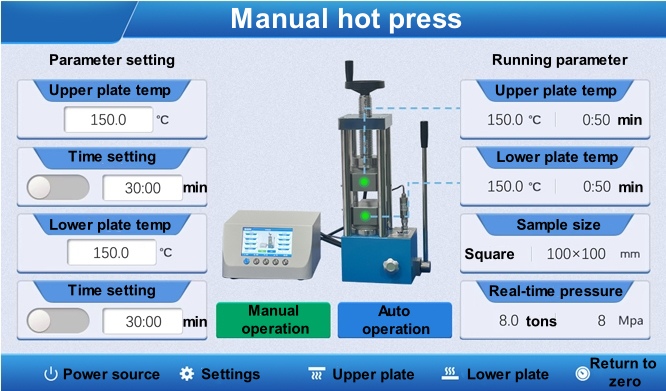

Standard interface: The heating temperature and constant temperature time of the upper and lower plates can be set separately on the interface.

Pressurization button: Press according to the parameters set on the interface.

Stop button: Press the stop button during the pressurization process to stop the pressurization.

Demoulding button: Press the demoulding button to release the sample according to the demoulding pressure.

Timing switch: The timing function can be turned on and off.



Operation interface (Automatic mode)

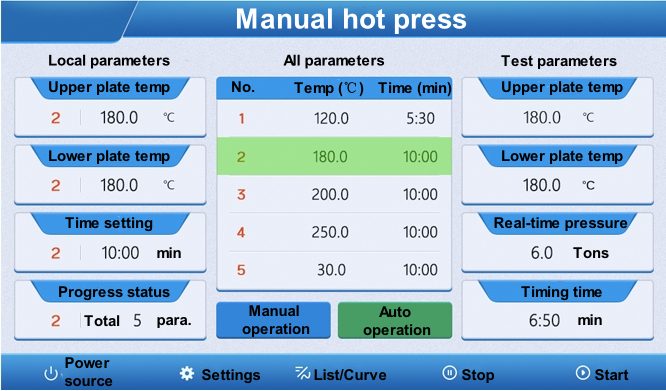

Start button: Can be pressed according to the multi-stage pressurization program.

Stop button:During the pressurization process, you can stop the pressurization process.

List/Curve: The current display state can be switched between list and curve



Setting interface

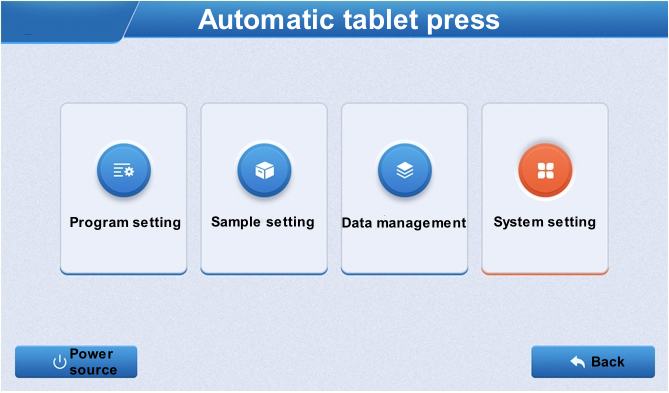

Tap Settings on the operation screen to enter the Settings screen. The Settings screen has four ICONS.

Program Settings: you can set up multiple pressure procedures and pressure holding time.

Sample setting: The shape and size of the sample can be set to facilitate the user to calculate the pressure of the sample.

Data management: Previously saved data records can be invoked and modified..

System Settings: Administrators can set various parameters, enter the password "666"



Setting interface

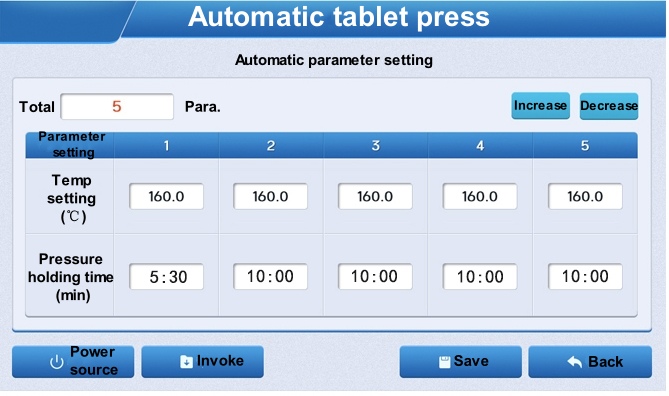

Multi-segment program Settings: Up to 5 segments of pressurized programs can be set.

Invoke button: Call the set parameters to the automatic operation interface for pressure.

Save button: Save the set parameters to the database for later invocation.

Back button: Returns to the Settings screen



Operation procedure









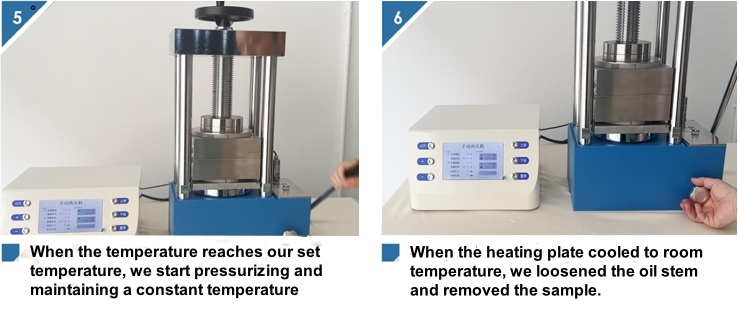

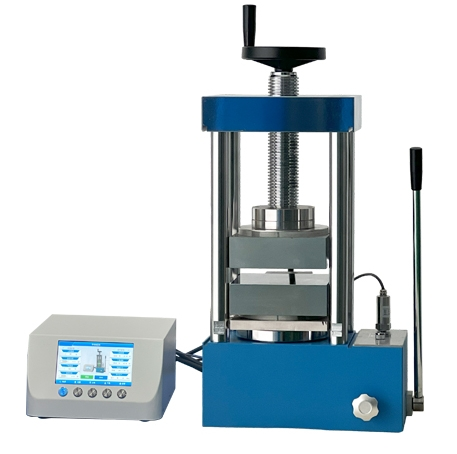

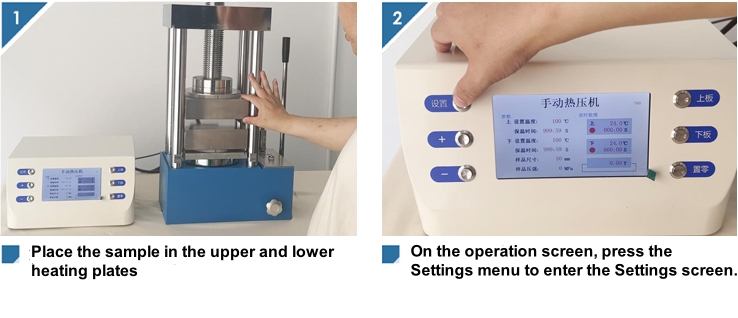

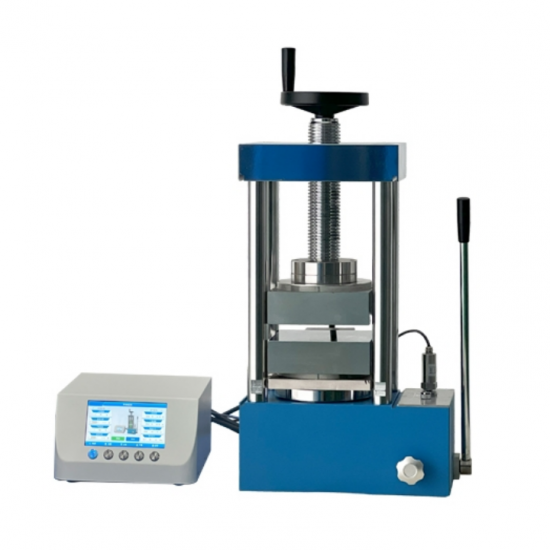

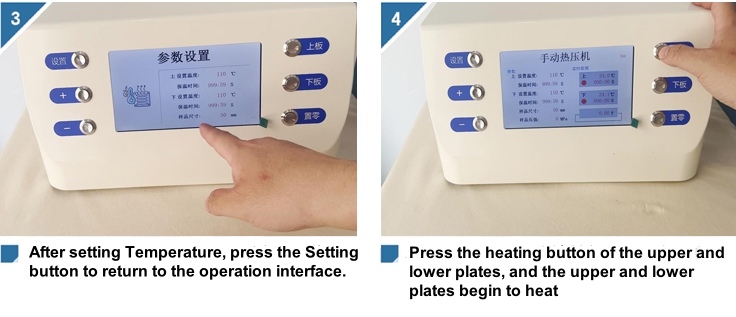

Technical parameter

Instrument model	PCH-600D2
Pressure Range	0-30.0 tons
Piston diameter	110mm (d) in chrome plated oil cylinder
Main overall structure	Equipmentwithout sealed connections toreduce oil leakage points
Mold heatingtemperature	Room temperature -300.0C/500.0C
Constant temperature time	1 second to 0 seconds
Temperature control accuracy	0.1℃
Heat insulation method	Imported insulation board
Cooling method	Quick cooling with water cooling [optionalwater cooling machine]
Mold size	200x200mm(MXN)
Host size	405x260x525mm(KxPXH)
Dimensions	950x260x525mm(LxWXH)
Power supply	1200 W(220V/110V can be customized)
Weight	180 Kg

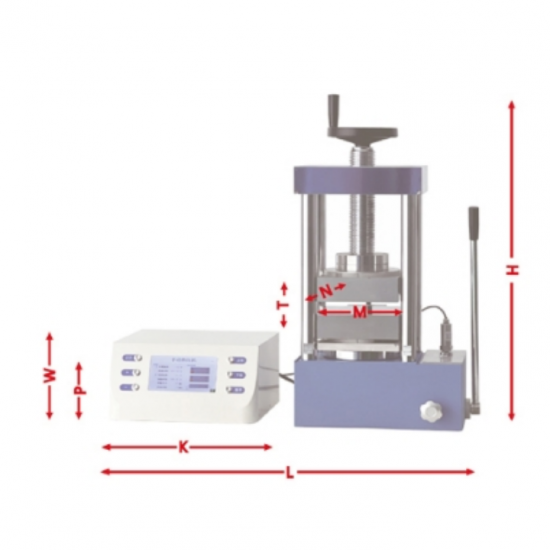

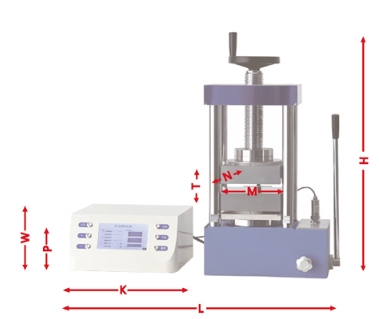

Dimensional diagram of powder tablet press
