Item NO.:
TMAX-Electrode-8Payment:
L/C,T/T,Western Union, PaypalLead Time：
2 daysCertificate:
CE ROHS Certificate

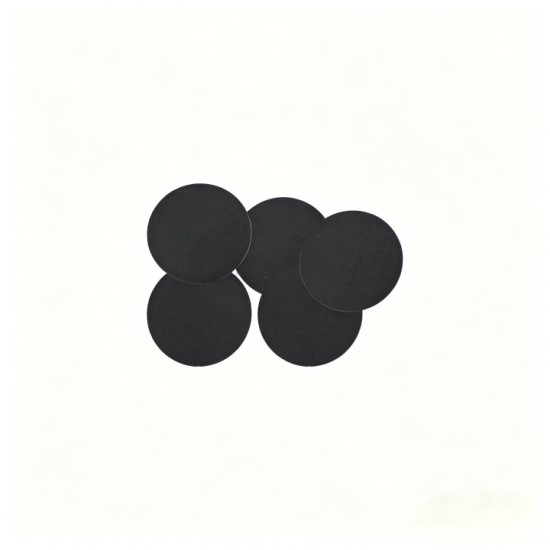

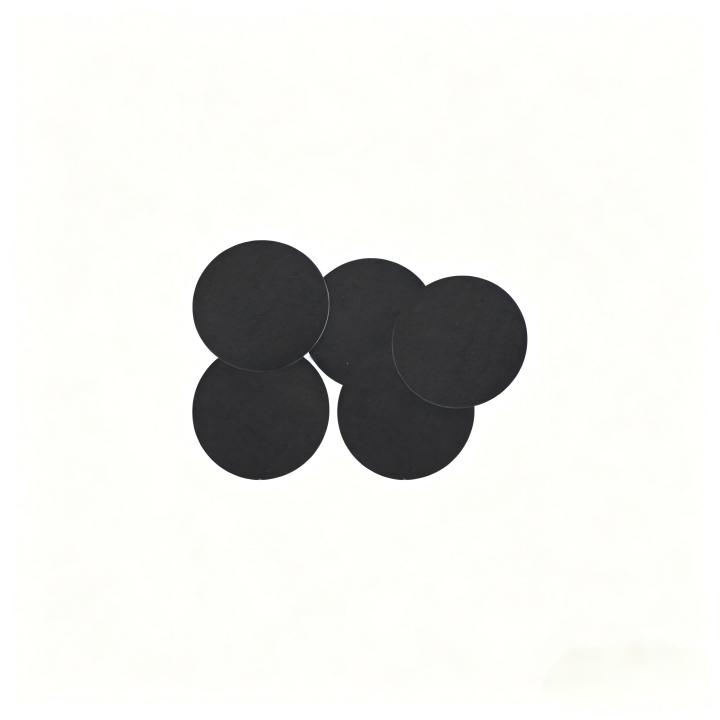

Iron-Based Titanium-Doped Manganese Oxide Circular Single-Sided Electrode Sheet
|
Item |
Parameter |
|
Electrode size |
Φ15 mm |
|
Coating type |
Single-sided coating (calendered) |
|
Active material thickness |
10 μm |
|
Coating areal loading |
5 mg/cm² |
|
Active material areal density |
4.59 mg/cm² |
|
Active material mass fraction |
80% |
|
Voltage range |
1 – 1.8 V |
|
Specific capacity |
165 mAh/g |
|
Compaction density |
2.2 ± 0.1 g/cm³ |
Packaging and transportation
Packaging material: cardboard box.
Packaging method: Vacuum sealed packaging.
Pay attention to moisture-proof, waterproof, and light proof storage.
Transportation requirements: prevent collision, compression, moisture, sun protection, and damage.
Storage environment(electrode packaging in sealed state)
Temperature: -40 ℃~60 ℃
Relative humidity: 75% RH Max
The shelf life: 12 months.
Product Display：
Production Machine:
Package:
Product Image:
