Hot Pressing and Short Circuit Testing Equipment for Pouch Cells

Application

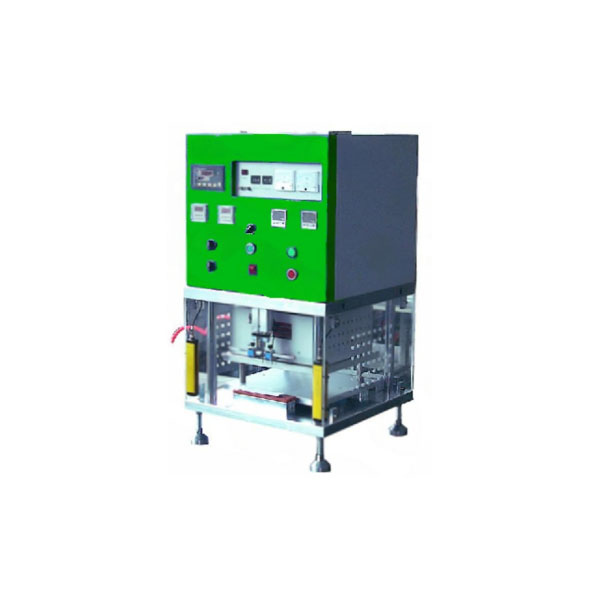

The Pouch Cell Hot Press Machine is engineered for the thermal compression molding of battery cells. By applying heat and pressure, it ensures uniform shaping of pouch cells, minimizes spring-back, lowers the risk of short circuits during assembly, and guarantees consistent final thickness. Additionally, it integrates an insulation resistance tester to identify micro-circuit defects and evaluate cell safety.

Key Features

- Heating and pressure controls are adjustable, with both actual and set values clearly shown on the LCD touchscreen for precise, user-friendly temperature management. - The upper and lower platens are parallel, with pressure adjustable (0–900 ±3 kg) via a regulator, making it suitable for diverse process needs. - A single-station configuration offers high structural stability and dependability. - High-quality heater platens enable efficient thermal conductivity, reducing energy usage while enhancing performance. - A safety light curtain prevents accidental activation during loading or testing procedures. - Dual-mode short-circuit testing (manual and automatic) facilitates rapid electrical safety inspections. - It detects leakage current and insulation resistance to assess micro-circuit integrity and overall cell safety. - Boasts a sleek, geometric sheet-metal design that is compact and aesthetically pleasing. - Offers two operational modes: automatic via electrical control, or manual for setup and debugging purposes.

Technical Specifications
