Item NO.:
TMAX-SLDPayment:
L/C,T/T,Western Union, PaypalLead Time：
5 daysCertificate:
CE ROHS Certificate

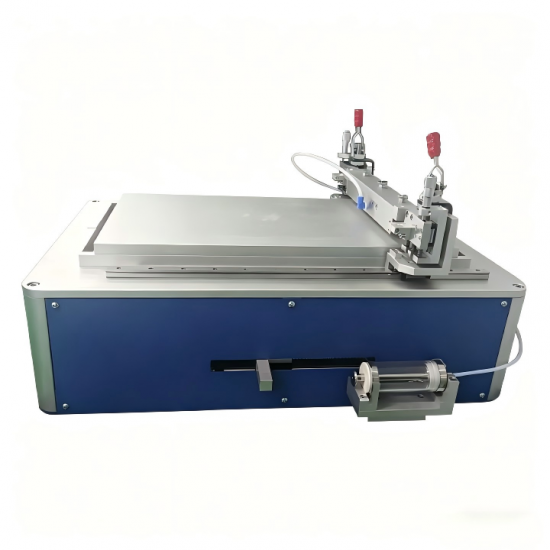

High-Accuracy Laboratory Slot-Die Coating System for Battery Electrode Films

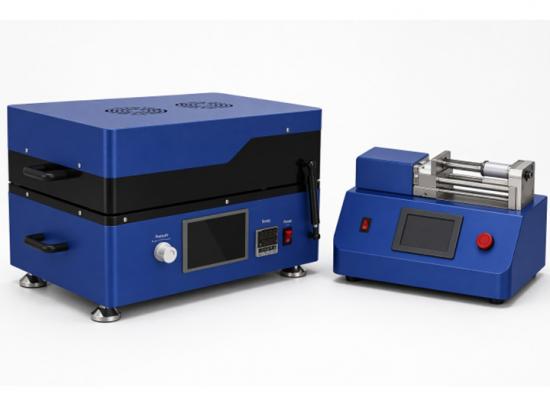

The automatic coating and drying machine is widely used in high-temperature coating research, including ceramic films, crystal films, battery material films, and specialized nano-films. It is designed to support scientific advancements in film formation under high-temperature conditions.
TMAX-SLD is a high-precision laboratory slot die coating system designed for uniform thin-film coating in advanced material research, including lithium battery electrodes, solar films, OLED layers, and conductive polymers.
|
Parameter |
Specification |
|
Coating Speed |
0-100 mm/sec (adjustable) |
|
Maximum Stroke |
250mm |
|
Vacuum Plate |
Equipped with a vacuum aluminum plate |
|
Vacuum Plate Size |
365mm × 200mm × 30mm (L × W × H) |
|
Blade Adjustable Range |
0.01 - 3.5mm |
|
Power Supply |
220V / 50Hz |
|
Machine Weight |
50kg |
|
Machine Dimensions |
500mm × 310mm × 260mm (L × W × H) |
