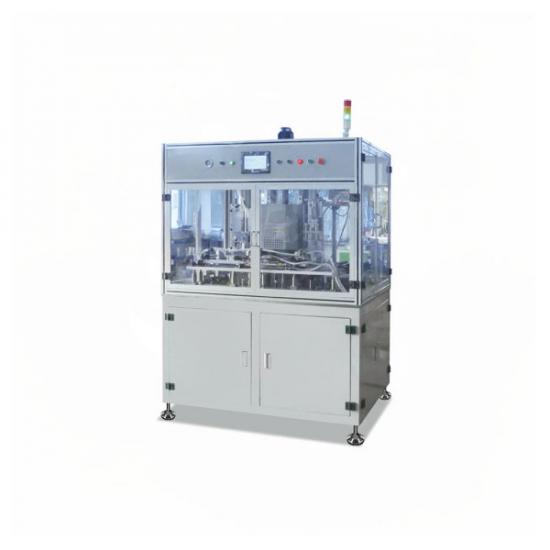

Fully Automatic Cylindrical Cell Grooving and Sealing Machine

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com

Item NO.:
TMAX-GCFK60M
Payment:
L/C,T/T,Western Union, Paypal
Product Origin:
China
Shipping Port:
Xiamen
Lead Time：
5 days
Certificate:
CE ROHS Certificate

Inquire Now

Product Detail

Fully Automatic Cylindrical Cell Grooving and Sealing Machine

Application

The TMAX-GCFK60M is a fully automatic cylindrical battery assembly production line designed for grooving, sealing, and testing processes in cylindrical battery and supercapacitor manufacturing. This patented system integrates high-precision automation to improve production efficiency and consistency, making it ideal for mass production environments.

Key Features

· Programmable operation modes: Allows for individual operation (grooving, sealing, testing) or full automatic cycle, providing flexibility and ease of use.

· High-precision linear guide rails ensure accurate grooving and sealing, with stable and consistent dimensions.

· Automatic robotic sorting system places products onto either the pass or fail conveyor, ensuring accurate classification.

· Servo-driven grooving mechanism, enabling precise control over insertion distance and speed.

· PLC-controlled system with HMI, allowing for intuitive automation and monitoring.

· Enclosed smart safety guard, providing secure and reliable operation.

· Modern geometric design, with refined appearance and user-friendly layout.

Technical Specifications

Parameter	Specification
Applicable Products	Cylindrical batteries, supercapacitors (customizable)
Internal Resistance Tester Range	0Ω–2MΩ (Accuracy: 1mΩ)
Height Detection Range	0–12mm (Accuracy: 0.001mm)
Compressed Air Supply	0.5–0.7MPa (adjustable)
Power Supply	AC220V / 50Hz
Power Consumption	3KW
Machine Dimensions	L1500mm × W1000mm × H1800mm
Machine Weight	1500kg

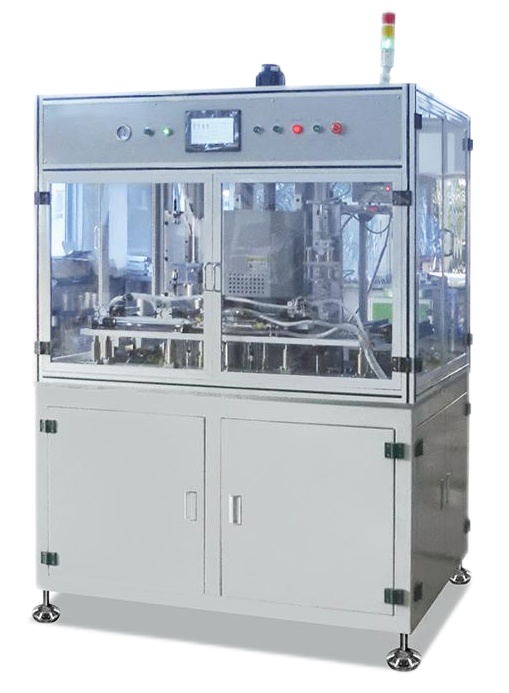

Grooving and Sealing Machine
