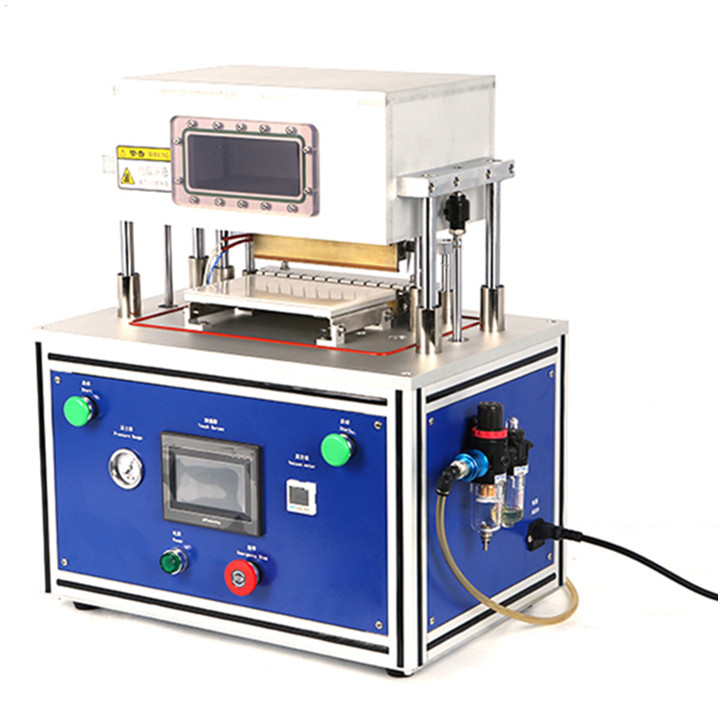

Final Vacuum Sealing Machine For Pouch Cell Preparation

TMAX-FS200 is mainly used for pouch cell vacuuming and second sealing after electrolyte filling.

1.Head made of copper material, heat transfer effect is good to save power consumption, improve efficiency, energy saving than similar products.

2.The upper and lower head pressure can be adjusted through the regulator to achieve different process parameters.

3.Upper and lower head with cylinder driven by two linear guide sleeve guide, up and down flexible, accurate guidance to ensure product parallelism after sealing requirements

4.With automatic puncturing function, waste recovery unit.

5.Cover cavity driven by the cylinder, guided by a linear guide sleeve, up and down flexible, accurate guide to ensure product sealing requirements

6.Can be applied to different specifications of the product battery, and the adjustment is simple and convenient.

7.Easy to operate, beautiful appearance, small size, light weight.

Sealing head temperature	RT-250℃,adjustable
Temperature control precision	±1.5℃
Heat sealing pressure	0-7kg/cm2,adjustable
Heat sealing time	0-99 second,adjustable
Sealing width	5mm,adjustable
Vacuum degree	-90Kpa ~ 0 adjustable (the buyer-owned vacuum pump)
Voltage	220V/50Hz
Power	300w heat pipe, heating when the power consumption of about 0.6KW
Compressed air source	0.5-0.7Mpa
Size	L500mm*W500mm*H700mm
Head parallelism	with triple carbonless paper, head pressure at 0.6MPa, the temperature at 200 ℃ when the seal out of the seal
Air consumption	about 0.2L compressed gas / each time
Pneumatic working speed	≥ 180 times / h
Dimension	515mm * 350mm * 505mm
Weight	56kg
