EV Bike/ Energy Storage/ ​Electric Bike/ ​Lifepo4 Battery Assembly Line Plant

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com

  • Item NO.:

    TMAX
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    5 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

EV Bike/ Energy Storage/ Electric Bike/ Lifepo4  Battery Assembly Line Plant

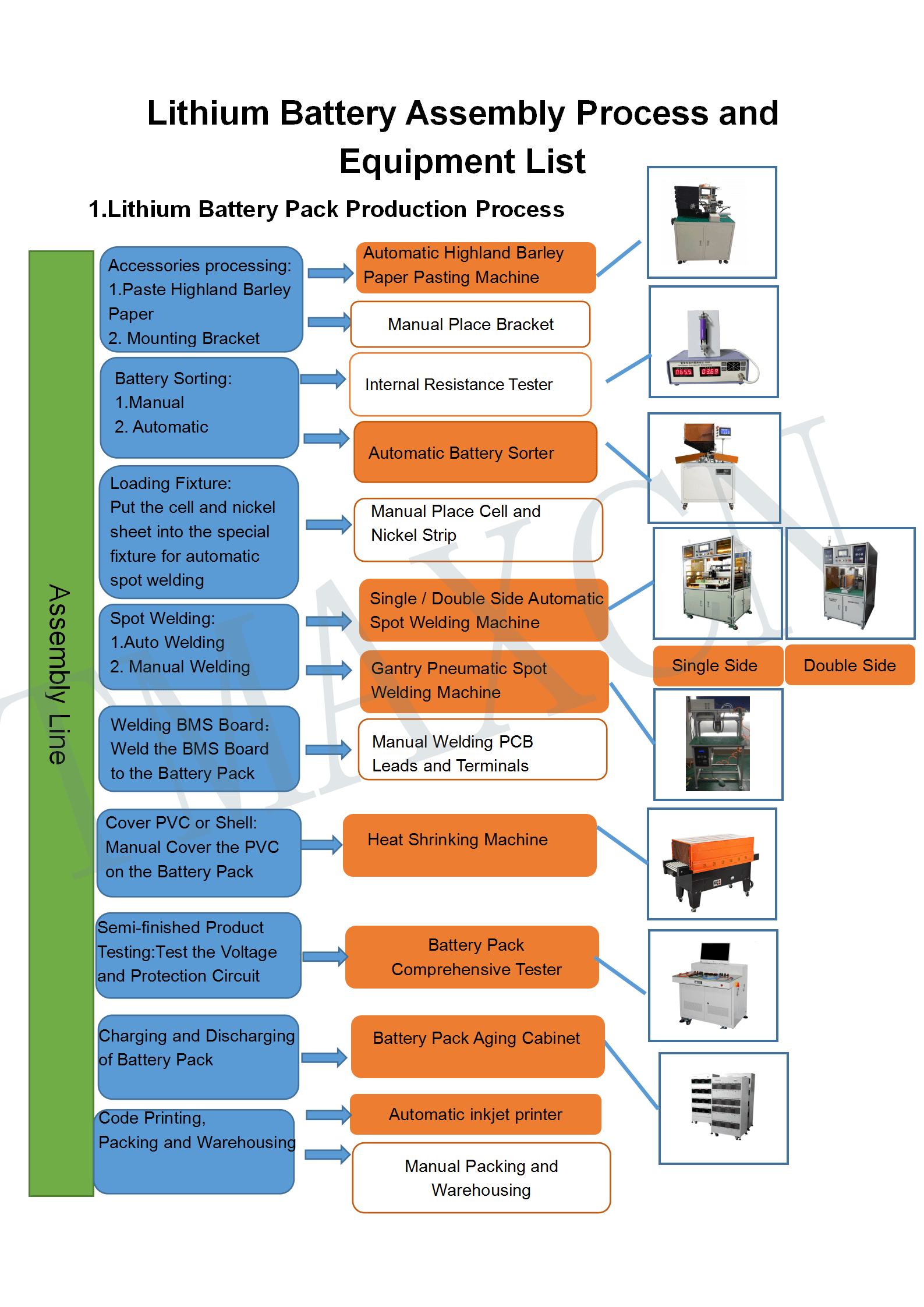

Cylindrical Cell Battery Pack Assembly Machine Line

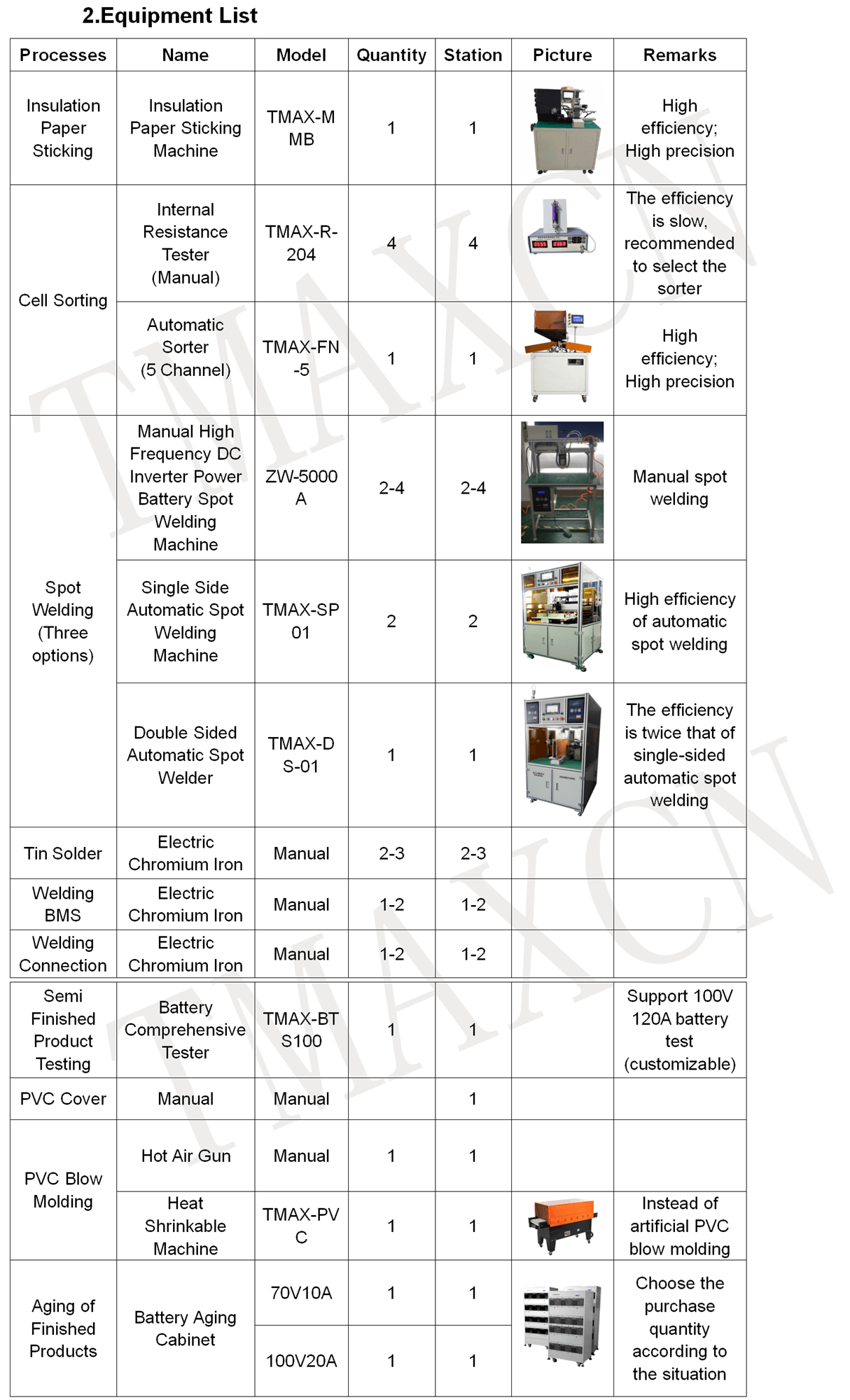

Cylindrical Cell Battery Pack Assembly Machine Line

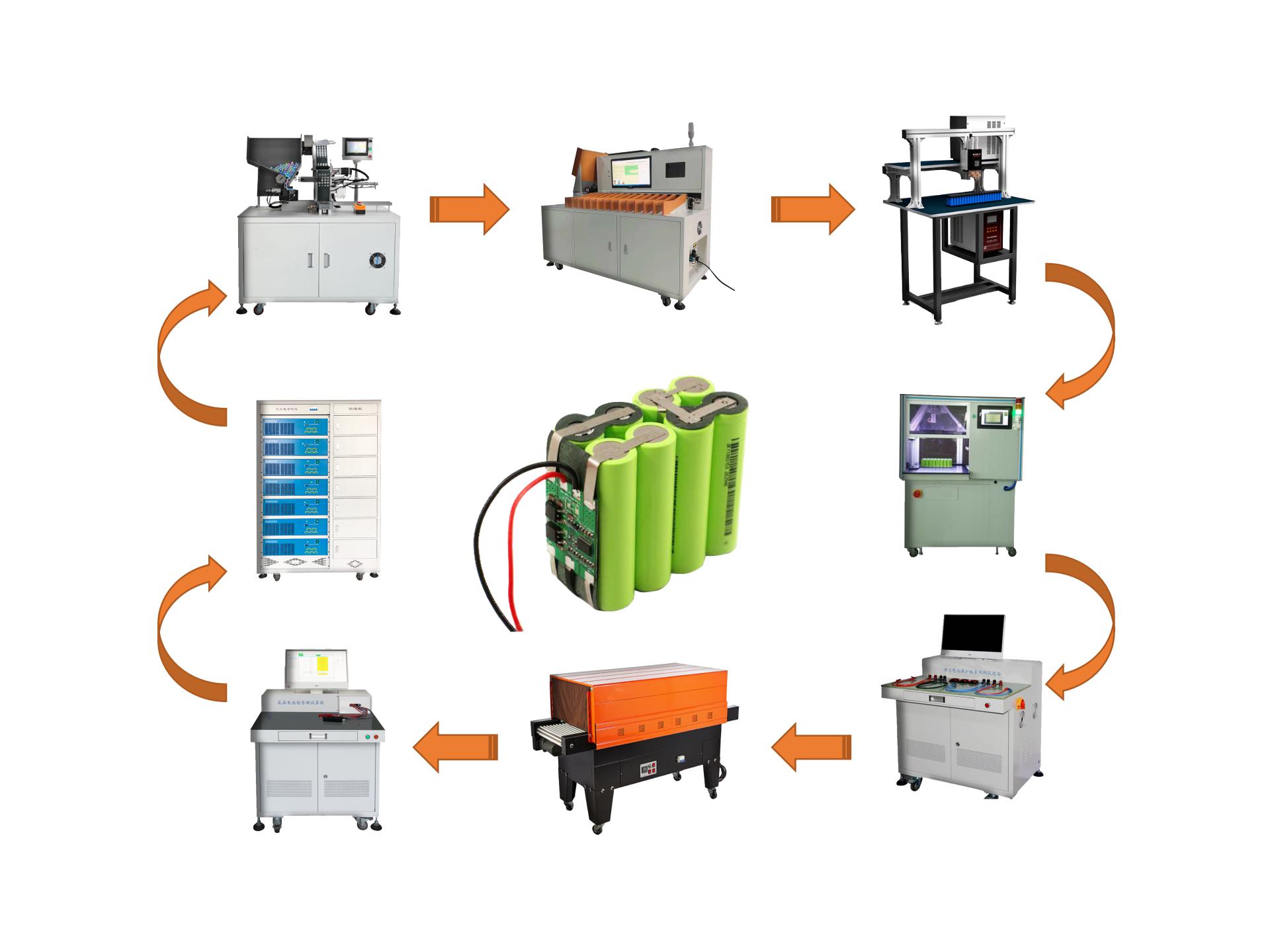

What machine will be used for making battery pack?

1. Lithium Battery Automatic Highland Barley Paper Pasting Machine

Highland barley paper has good insulation, water resistance and wear resistance. When the lithium battery is working, it can prevent the positive pole from colliding with the positive pole, resulting in short circuit or prevent dust from entering the gap.


2. Lithium Battery Sorting Machine

The battery sorter is a sorting device for testing the internal resistance and voltage of cylindrical batteries. It has a high-precision automatic test system for internal resistance and voltage. The internal resistance and voltage values are set on the computer software and sent to the specified gear. The sorter detects the internal resistance of lithium batteries, analyzes the computer production classification data, generates charts at the same time, and visually counts and displays the mass production quality.


3. Lithium Battery Spot Welding Machine

The lithium battery is placed in a special fixture, and the nickel sheet is used as a conductive bridge to connect the battery and the battery together, so that each energy of the battery is aggregated together.



4. Battery Pack Comprehensive Tester

The battery comprehensive tester is used to measure the open circuit voltage, internal resistance, charging and discharging performance and battery capacity of the battery pack, especially the overcharge protection, over discharge current protection and short circuit protection of lithium battery. It is very convenient to measure the corresponding value.


5. Battery Pack Aging Machine

The aging cabinet is used to simulate daily life. It is used to simulate the charge and discharge of  battery pack and how long the battery pack can be used.

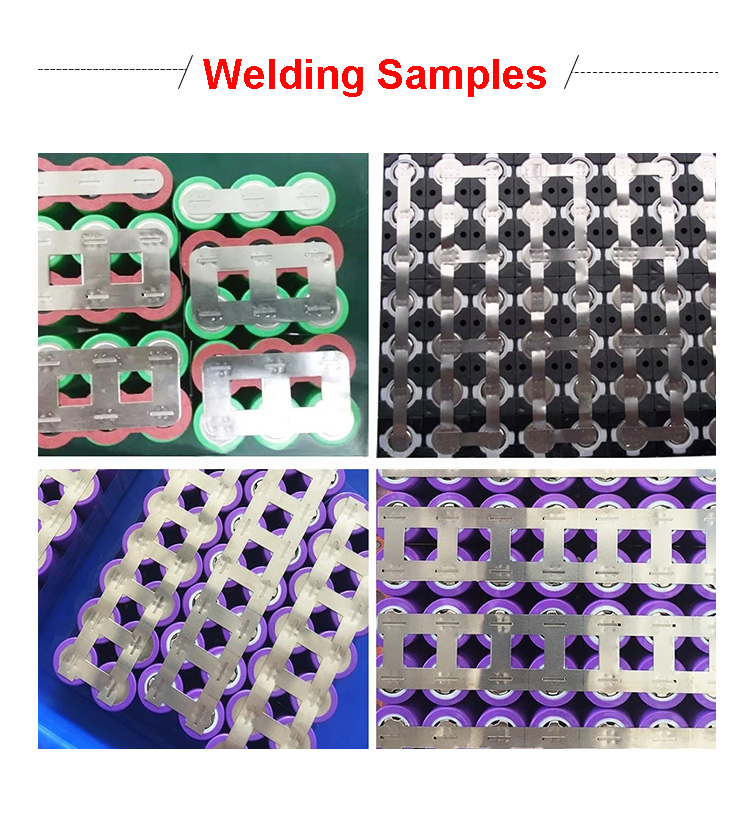

battery sticker/sorter
