Energy Regenerative Aging Machine Battery Pack Charging And Discharging Machine

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-TG8002
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    5 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

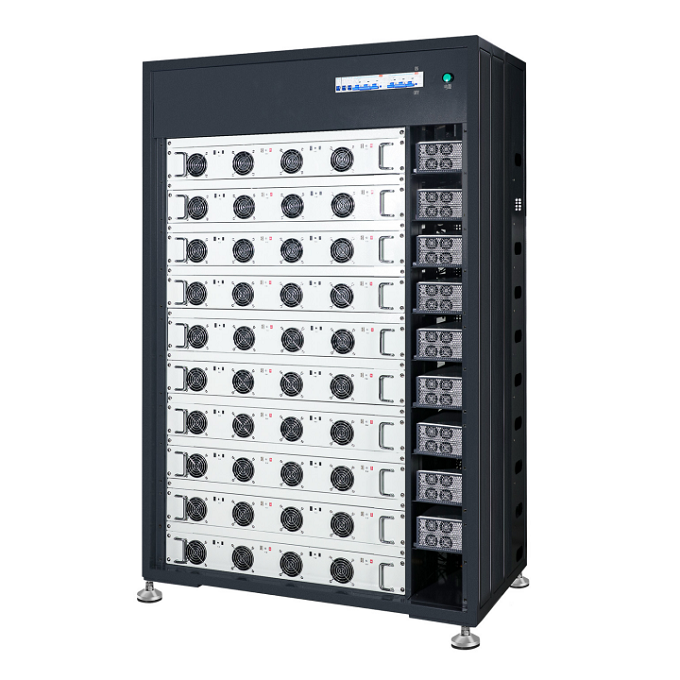

Energy Regenerative Aging Machine Battery Pack Charging And Discharging Machine



Application:

Production inspection of battery modules in battery production enterprises;

High current charging and discharging detection of EV/HEV power battery system;

Perform battery simulation testing on actual road conditions;

Daily maintenance of battery modules in battery factories and charging stations;

Research institutions conduct high current charging and discharging detection, as well as battery performance testing on battery modules.




Ⅱ、Product Features

Using a 32-bit ARM main control chip

Significantly improves execution speed and accurately records changes in battery voltage status

Scan the code to search for data

Accurate retrieval of battery aging parameters on the computer through barcode scanning

Protection and abnormal warning

Equipped with anti reverse connection function, voltage upper and lower limit protection setting protection, testing abnormal alarm prompt

Energy feedback

Energy feedback and bidirectional energy-saving of charging and discharging can save a lot of electricity costs, as well as save a lot of energy consumption and air conditioning electricity costs caused by heat generation

CCCV charging

During the charging process, there is no gap transition and no voltage or current surge. It can effectively prevent protection actions and secondary protection actions caused by islanding effects on PCBs, or overshoot caused by thermal concentration of electrode ears due to peak currents. Stable current and voltage sampling, high accuracy, and good long-term stability.

Voltage clamp

Voltage clamp is used to set the voltage to prevent damage to the battery or battery pack protection board during battery protection operations or equipment abnormalities during charging

Customizable

① Battery pack temperature sampling function;

② Single cell voltage sampling function of battery pack;

③ Frequency output function;

④ Switch action function;

⑤ Connect MES system functions


Ⅲ、Technical Parameter

Product name

Feedback type battery pack aging machine

Equipment operating temperature

0-35℃

Model

TMAX-8002 100V20A

Operating noise

≦65-75dB

Chassis size

H1741mmL1092mmW600mm

Voltage range

0-100V

Equipment weight

≦353.5KG

Charging and discharging current

0.2-20A continuously adjustable

Operating ambient temperature

1-50°℃

Voltage and current resolution

0.1mV0.1mA

Operating environment humidity

0-90%RH

Accuracy

±0.1%

Input power supply

220V/50Hz small power

380V/50Hz high-power

Paralleling

4 channels
