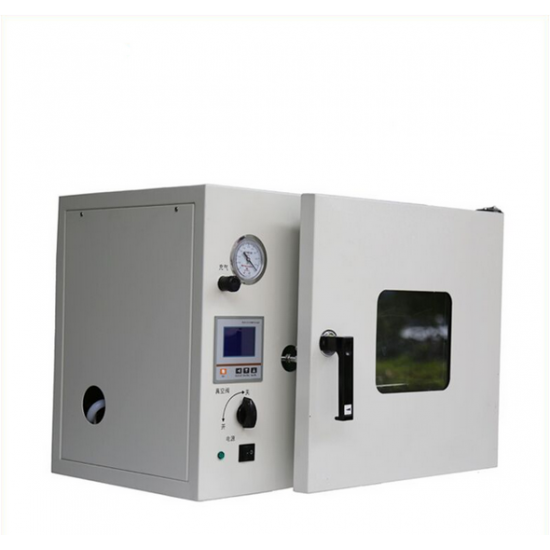

Battery 50L 200C Vacuum Dry Oven (16.3 X 13.5 X 14.5" ) With Digital Temperature Controller

Features

1.      Radiant warm wall heating system provides optimal uniformity and conserves chamber space for drying, curing, vacuum embedding, and plating applications.

2.      52 L Middle size vacuum chamber.

3.      3" (7.6 cm) glass wool insulation prevents heat loss from working chamber.

4.      Silicone door gasket and positive latch door maintain seal at all vacuum levels.

5.      Exclusive polycarbonate safety shield protects door glass.

6.      Vacuum fittings require .25" (6.35 mm) I.D. tubing.

7.      Easy-to-clean #304 stainless steel chamber interior.

8.      Vacuum and air lines constructed with corrosion-resistant stainless steel tubing for optimum chamber cleanliness and long term performance.

9.      Two removable stacking aluminum shelves included.

10.   CE certificated

SPECIFICATIONS:

Model	6052	6210	6090	6250	6050		6051	6021	6020	6030A Special for chemistriy	6030B/6050B Special for chemistriy
Electrical Requirements		220V 50Hz		380V 50Hz	220V 50Hz
Input Power		2100W	1400W	3000W	1400W		1400W	500W	500W	500W	400W/700W
Temperature Range	RT	RT+10~250℃					RT+10~200℃		RT+10~250℃		RT+10~65℃
Temperature Control/Stability		0.1℃/±0.5℃
Vacuum Degree	133Pa
Ambient Temperature	+5~40℃
Interior Dimension (mm)W*D*H	415*370*345	560*640*600	450*450*450	700*600*600		415*370*345		300*300*275		320*320*300	320*320*300 415*370*345
Overall Dimension	720*525*535	720*820*1750	615*590*1470	1050*760*910		720*525*535		580*450*450		630*510*460	610*510*490 710*560*550
shelves	2(pcs)	3(pcs)	2(pcs)	3(pcs)		2(pcs)		1(pcs)		1(pcs)	1/2 (pcs)
Chamber Material	Stainless						Rolled sheet		Stainless
