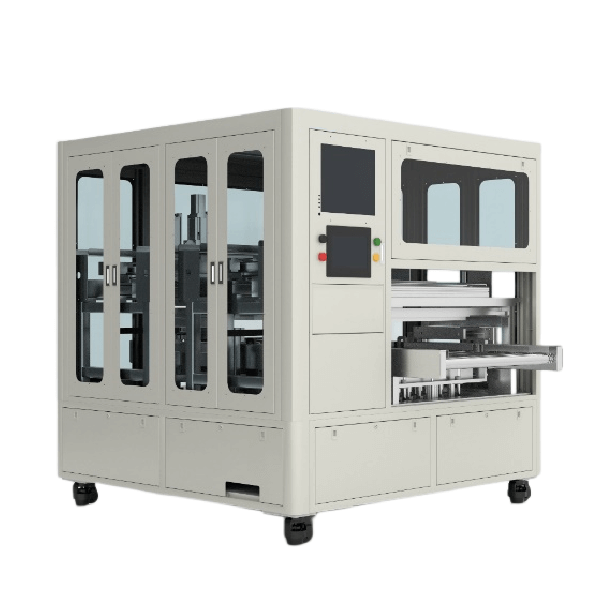

Automatic Sealing Nails Removing Machine And Glue Nails Insertion Machine for Prismatic Cell

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com

  • Item NO.:

    TMAX-TY-SNIM
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    5 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

Automatic Sealing Nails Removing Machine And Glue Nails Insertion Machine for Prismatic Cell



I. Advantages and Characteristics

1. Automatically remove the sealing nail from the battery injection hole; Automatically insert the adhesive pin into the battery after completing negative pressure conversion

2. Equipped with automatic recheck function, the number of nail pulling times can be manually set. If multiple nail pulling/inserting failures occur, an immediate alarm will be given and manual processing will be reminded

3. Equipped with the function of shaking and dropping nails to prevent gripping and sticking nails

4. Design the material receiving mechanism and alarm when the material is full

5. Data processing: Software independently developed, interacting with MES, WMS, WCS system data, with strong plasticity

6. Loading method: automatic loading and unloading of materials on the conveyor line



II. Performance parameters

1. Nail pulling capacity: ≥ 24PPM (customizable)

2. Pin production capacity: ≥ 12PPM (customizable)

3. Battery size: 15-71mm thick, 148-175mm long, 100-207mm high

4. Control method: PLC

5. One-off qualification rate: ≥ 99%
