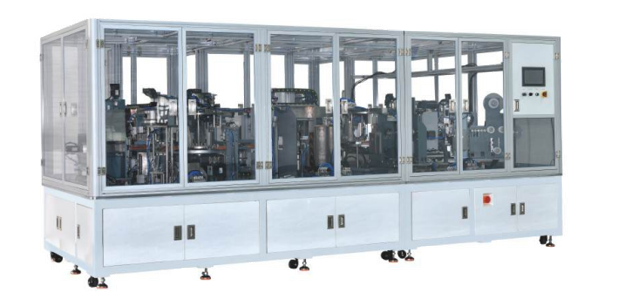

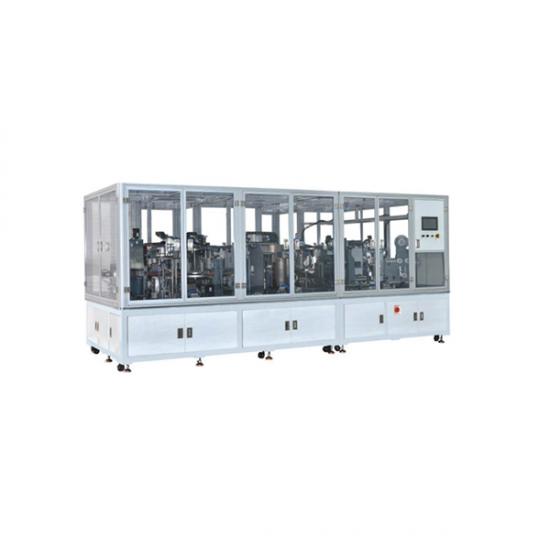

Automatic Sealing Equipment Lithium Pouch Cells Sealer

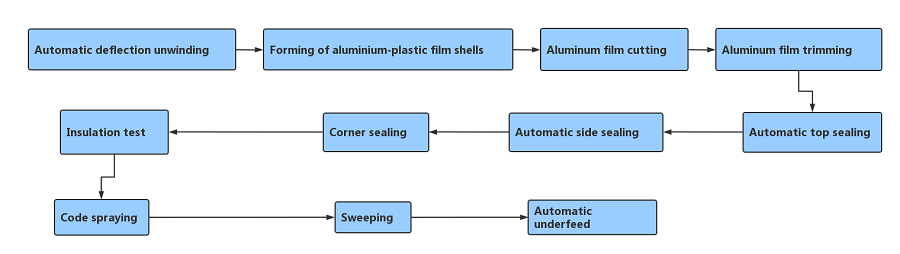

Workflow

Specification

Project	Parameters
Aluminium film punching method	3-piece film method, top pressing and bottom topping
Film feeding method	Servo feeding, feeding accuracy ≤ +0.1mm
Punching pattern	Servo punching shell, adjusting accuracy ≤±0.1mm, can punch single and double pits, simultaneous adjustment
4-corner error of aluminium film punching	≤±0.15mm
Alignment accuracy of the top and bottom of the aluminium film	≤±0.5mm
Sealing mode	Heat encapsulation
Sealing drive	Servo pressure mode, with cylinders on 2 sides of the head as pressure adjustment
Head temperature control accuracy	±3°C
Head operating temperature range	170~200°C
Coding machine	Inkjet
Production efficiency	Model 150 ≥12ppm; Model 300 ≥8ppm
Conformity rate	≥99%
Crop rate	≥98%
Dimension	W7000 × L3000×H2350mm
Weight/load	>750Kg/M2
Power supply	AC380V three-phase;voltage fluctuation±10%;power:20KW;frequency:50Hz
Compressed air	0.5~0.7Mpa ( 5~7kgf/cm2 ), dosage 400L/min

Model	TMAX-ZTHFZX-150	TMAX-ZTHFZX-300
Cell length	45~150mm	120~300mm
Cell width	35~100mm	80~200mm
Cell thickness	3~10mm	4~12mm

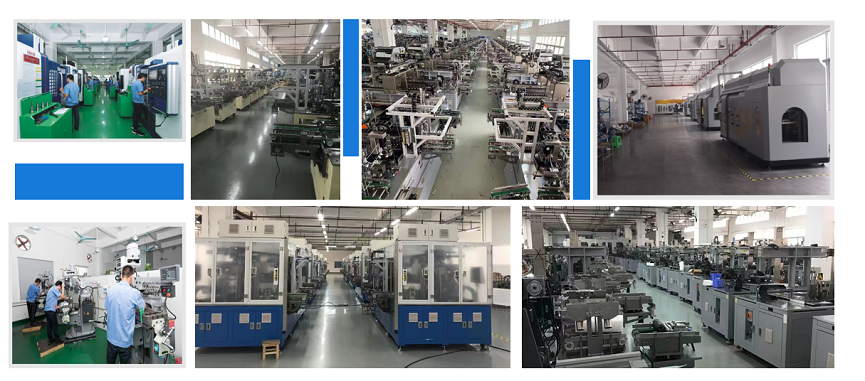

Production Assembly Plant
