Automatic Punching Machine/Stamping Machine for Prismatic Cell Electrode Forming

Ⅰ、Equipment Introduction

1.1 Function Description

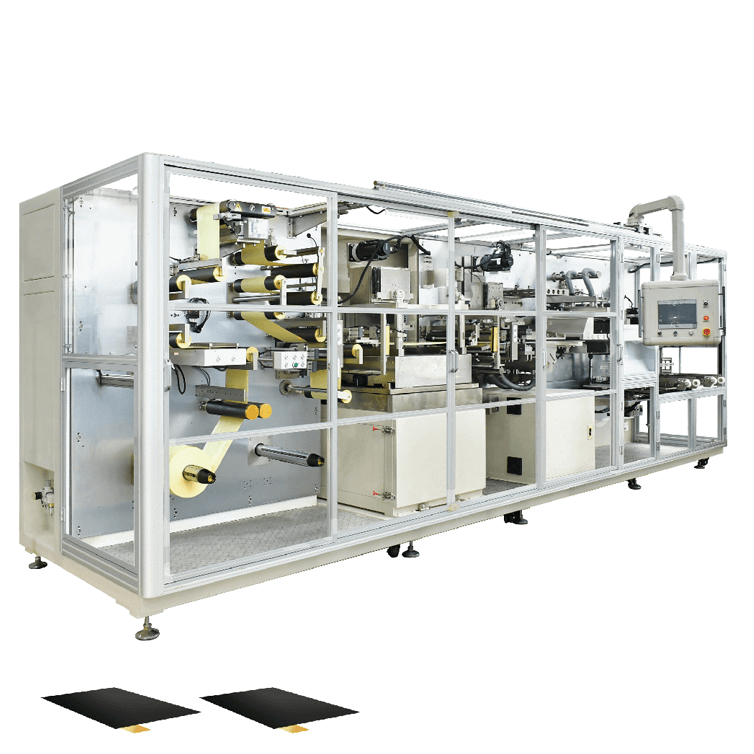

This machine is suitable for automatic forming of prismatic cell’s anode and cathode electrode(continuously coated with full tabs), using a metal mold punching method. Manually install the electrode coil onto the inflatable shaft of the equipment, and the equipment automatically unwinds and corrects deviation. The tension of the electrode film is controlled through a tension control system. After the electrode film undergoes EPC secondary correction, the appearance quality of the positive and negative sides of the electrode film is detected by CCD. The feeding mechanism pulls the electrode film to the punching and cutting position for punching and cutting the tabs and slice. The conveyor electrode film is transferred through a vacuum receiving belt, and the size of each electrode film is detected by CCD photography, The upper and lower surfaces of the electrode are treated with ion wind dust removal and iron removal, and defective products are automatically removed into the waste box. Qualified products are collected into the finished material box, and when the material box is full, it automatically connects to the material box conveyor line. Automatically replenish empty material boxes.

Product specification parameters

1.2 Incoming material specifications：

1.3 Incoming material requirements：

1.4 Equipment technical capabilities

Ⅱ、Configuration Component Description

2.1 Automatic unwinding mechanism

2.2 Function：

Manual feeding, using an inflatable shaft to fix the pole coil material, and the feeding shaft is driven by a servo motor to actively unwind and automatically correct deviation;

2.3 Configuration and parameters：

1.  It adopts an inflatable shaft for unwinding, and is driven by a servo motor and a precision reducer to actively unwind. The unwinding shaft is set in 3-inch increments, with a maximum compatible unwinding diameter of 700mm;

2.  The unwinding correction adopts imported high sensitivity correction sensors, servo motors and screw drives, real-time correction, correction stroke+/-50mm, correction accuracy:+/-0.15mm;

3. The feeding height is 800mm, and the inflatable shaft is equipped with a sliding guide wheel, which is convenient for operators to operate;

4.  Equipped with a laser line to calibrate the edge position of the pole roll, making it convenient for operators to align when replacing the material roll;

5. It has the function of calculating the diameter of the program coil. When the remaining material coil is at the set value, the program alarms to remind that the remaining material is insufficient and needs to be replaced;

2.4 Manual tape connection platform

2.5 Function：

  Used to compress the electrode strips at both ends and manually cut and stick the tape when replacing the electrode strip coil.

2.6 Configuration and parameters：

1. Use a cylinder to drive and tighten both ends of the pole piece before manually connecting the strip. The contact surface between the pressure block and the electrode strip is made of non-metallic material, which will not damage the strip path;

2. The tape receiving platform is equipped with scale markings for easy alignment and leveling during tape receiving;

3. The bottom of the cutting groove is equipped with a negative pressure dust removal mechanism, which can absorb the dust after cutting and avoid secondary pollution to the material belt;

Ⅲ、Process correction mechanism

3.1 Function：

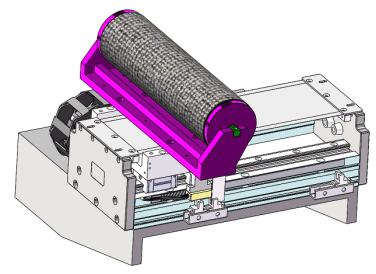

Using domestically renowned brand correctors to achieve real-time correction of the strip during operation, ensuring consistent strip position during continuous unwinding;

3.2 Configuration and parameters：

1. Adopting a well-known brand deviation correction system in the industry, real-time detection, control, and display are carried out to correct the horizontal deviation of the edge of the electrode coating during the strip moving process in real time;

2. Deviation correction stroke X, Y:+/-10, R:+/-5 °;

3. Deviation correction accuracy：+/-0.1mm；

4. Correction width：≥120mm；

Ⅳ.Tension mechanism

4.1 Function：

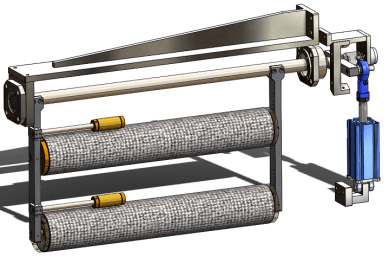

The structure adopts a low friction cylinder with a swing rod, and is controlled by an electrical proportional valve to achieve constant tension of the belt. The tension size can be set;

4.2 Configuration and parameters：

1. Adopting a low friction cylinder and swing rod structure, controlled by an electrical proportional valve to achieve closed-loop constant tension;

2. The roller adopts carbon fiber roller surface polishing treatment, equipped with high speed low friction bearings, to reduce belt resistance;；

3. Belt tension: 0-200N, tension fluctuation:+/-5%

Ⅴ、Electrode plate over roll

5.1 Function：

Used for transitional conveying of the strip during the unwinding process of electrode coil materials;

5.2 Configuration and parameters：

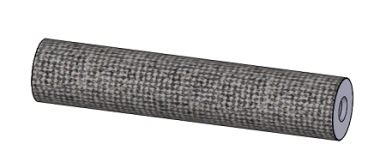

1. The electrode roller adopts aluminum+brown hard oxidation/carbon fiber coated hardening resin, with a surface roughness better than Ra0.6. All rollers undergo dynamic and static balance testing;

Ⅵ. Electrode sheet cache

6.1 Function：

When the mold is slicing, the cache mechanism absorbs the strip released during this time period, achieving the function of continuous unwinding;

6.2 Configuration and parameters：

1. Use servo module to actively cache, ensuring continuous unwinding during die cutting, stabilizing tension, improving production efficiency, and ensuring drawing accuracy;

2. The drum is made of carbon fiber, reducing the inertia moment of the storage drum, ensuring the accuracy of material pulling and equipment stability;

3. Cache electrode length: ≥ 300mm

4. Positioning accuracy: ± 0.1mm

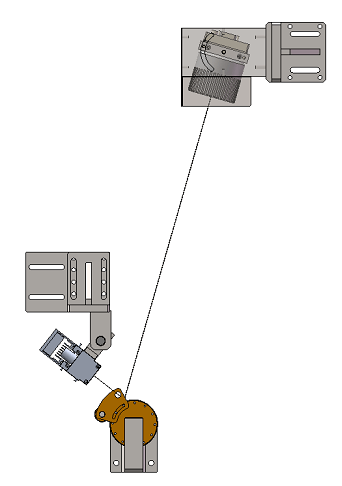

Ⅶ、Defect detection institutions

7.1 Function：

Perform defect detection on the positive and negative surfaces of the electrode, output NG signals, and record defective product data;

7.2 Configuration and parameters:

1. Use a line scanning camera to detect surface defects on the front and back sides of the electrode, record defective product data, and save it to a computer;

2. Pixel accuracy：+/-0.05mm

3. Minimum detection area：≤0.5mm²

4. Error rate：≤0.5%

5. Leakage rate: 0

6. The corresponding parameter settings can be saved for different types of electrodes, and the detection images can be viewed on the display screen;
