Automatic Pouch Cell Four Station Battery Heat Sealing Machine

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-TTS003
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    5 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

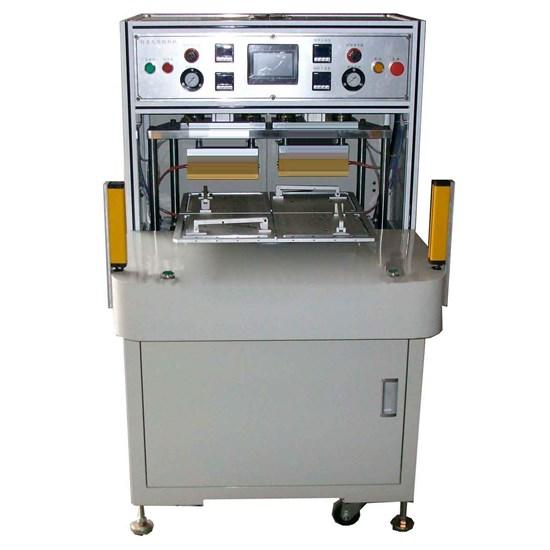

Automatic Pouch Cell Four Station Battery Heat Sealing Machine


Features

1.Suitable for soft packing lithium core top-side heating vacuum sealing

2.The 4 stations turntable structure, cam positioning, precision bias error is less than ± 30

3.To configure a single head pressure regulator

4.Import PLC, touch screen control display, imported thermostat, error of ± 2 °C

5.Fixture locating detection, double-side heating, temperature alarm, screen protection

6.Using the programmable controller PLC practical automatic control, touch screen to realize man-machine dialogue, convenient operation


Technical Parameters

Main technical

parameters

TMAX-TTS001

       TMAX-TTS002

TMAX-TTS003

Size(L*W*H)

870*870*1500mm

970*970*1500mm

1100*1100*1500mm

Weight

500kg

800kg

1000kg

Max sealing size

top:200mm side:200mm

top:240mm side:240mm

top:240mm side:240mm

Sealing head length

210mm

250mm

330mm

Sealing stamp width

2-10mm

2-10mm

2-10mm

Production capacity

200-600pcs/H

100-250pcs/H

100-200pcs/H

Temperature error

 ± 2 °C

 ± 2 °C

 ± 2 °C

Source voltage

AC 220V

AC 220V

AC 220V

power

3.5KW

3.5KW

3.5KW

Air supply

0.6-0.7Mpa 10L/S

0.6-0.7Mpa 10L/S

0.6-0.7Mpa 10L/S



Heat Sealing Machine
