Automatic Nickel Strip or PVC Heat Shrinking Tube Cutting Machine

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com

Item NO.:
TMAX-YS-300
Payment:
L/C,T/T,Western Union, Paypal
Product Origin:
China
Shipping Port:
Xiamen
Lead Time：
5 days
Certificate:
CE ROHS Certificate

Inquire Now

Product Detail

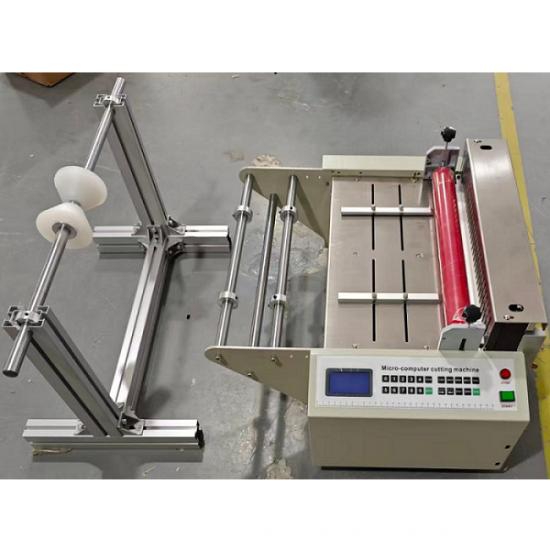

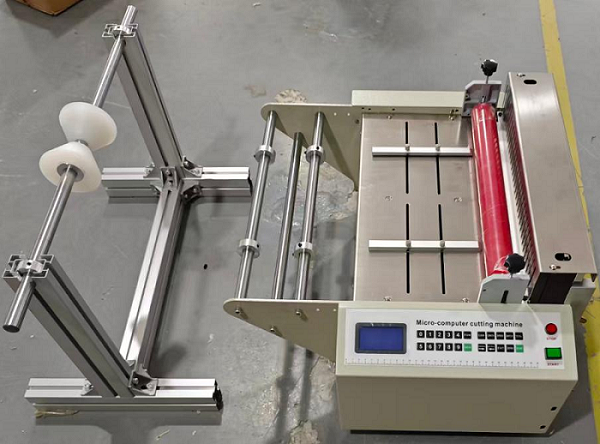

Automatic Nickel Strip PVC Heat Shrinking Tube Cutting Machine

I.Product Principle

This machine adopts a microcomputer numerical control display device, with the cutting length/quantity and feeding speed freely set. It is equipped with an adjustable roller feeding

mechanism, which automatically adjusts the pressure and lifting on both sides, and can quickly discharge materials. Combined with a top needle feeding mechanism, it effectively prevents

material scratches and is mainly suitable for high-speed cold/hot full/half cut cutting of strip materials. High precision, low loss, ergonomic design, simple operation, high automation

Fully automatic cutting machine, tape cutting machine, slicing machine, models including YS-100-800 with reset function. Fully automatic computerized cutting machine, slicing machine,

and tape cutting machine can automatically cut various tubular, strip, and linear materials to a fixed length. The product is simple and practical, saving a lot of manpower, material resources, and financial resources.

II.Product Parameters

1. Power supply: 220V

2. Cut length: 0.1mm ---99999.9mm

3. Cutting width: 0.1-280mm;

5. Weight: 55KG

6. Tool Material: Imported SKD2

7. Feeding speed: adjustable

8. Specifications: Length * Width * Height L645 * W530 * H345 mm

9. Power: 500W

10. Motor: Feeding: 86 steps

Cutting blade: AC motor

11. Stepper motor driver: HZX-300D

12 feeding roller: Youli glue

III.Performance Characteristics

1. Specialized mechanical structures and special cutting tools, coupled with professional software

control, completely solve the problem of uneven incisions: achieving incision flatness/accuracy

2. Independently developed specialized cutting machine motion control system, core technology, and suitable for fixed length cutting of equipment in various industries

3. Full Chinese LCD large screen display, easy to operate, simple and convenient

4. High speed feeding, microcomputer program control with high precision

5. The length and speed can be continuously adjusted to achieve efficient operation

6. The cutting speed is adjustable, fully controlling the high and low speeds of the cutting machine

7. Set the automatic grouping cumulative and total cumulative counts

8. Batch pause and delay time can be set

IV. Scope of Application：

Widely applicable to industries such as electronics, automotive and motorcycle parts, clothing and leather, electrical appliances, motors, toys, transformers, etc (Different materials have different

requirements)
