Automatic MYLAR Sticking Machine

Automatic MYLAR Sticking Machine After Lithium Pouch Cell Top&Side Sealing

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-TMJ150

  • Payment:

    L/C,T/T,Western Union, Paypal

  • Product Origin:

    China

  • Shipping Port:

    Xiamen

  • Lead Time：

    5 days

  • Certificate:

    CE ROHS Certificate
Inquire Now
  • Product Detail

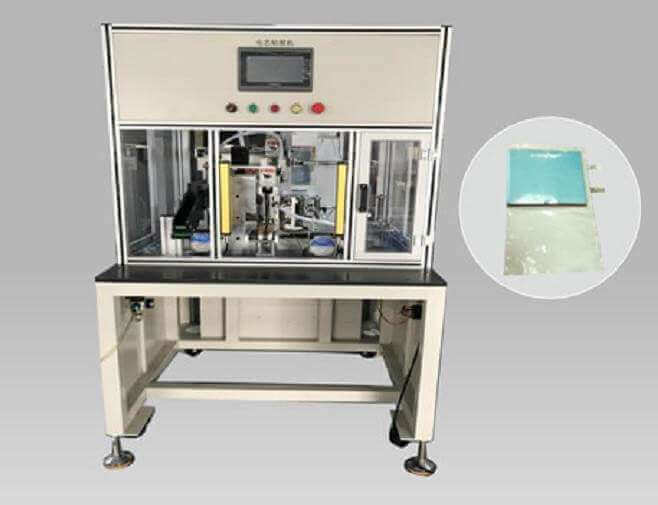

Automatic MYLAR Sticking Machine After Lithium Pouch Cell Top&Side Sealing



Application

It is suitable for automatic battery protection MYLAR after the top and side sealing of lithium pouch cell to avoid scratching the cell surface during the flow drawing process.



Principle

Manually place the battery cell upright in the feeding guide groove, push the battery cell to the front positioning block, and send the positioned battery cell to the filming rubber roller to complete the filming and then send it by the conveyor belt (discharge) Recycling place (this equipment realizes single person and single machine)



Basic parameters

Power supply

AC220V/50Hz, power: 1.5KW (prepared by customer)

Compressed air

≥0.6 MPa 10L/min(prepared by customer)

Weight

About 500kg

Dimensions

(L*W*H) 1400*1200*1700 mm

Color

International Warm Grey 1C



Technical parameters

Applicable specifications

W: 30-100mm(without airbag); H: 50-150mm, T: 3-12mm

Can be adjusted according to different types of batteries, battery width adjustment range

30-100mm(without airbag)

Input parameter

The maximum outer diameter of the protective film is 300mm, and the installation inner diameter is 78mm

Stick MYLAR roller effective length

150mm

Accuracy

After the battery cell is pasted with the protective film, the accuracy of the length direction of the battery cell is ±0.5mm, and the accuracy of the width direction is ±0.5mm

Output

900-1200pcs/h
