Item NO.:
TMAX-2DCF-550APayment:
L/C,T/T,Western Union, PaypalLead Time：
5 daysCertificate:
CE, IOS, ROHS, SGS, UL Certificate

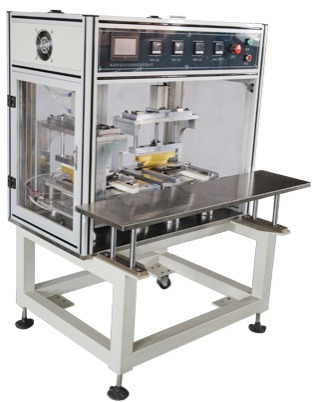

1. Equipment Description
This equipment accommodates top and side heat sealing of pouch lithium-ion batteries. (Top sealing employs soft sealing; side sealing utilizes hard sealing, as per customer requirements.)
2. Basic Configuration
- Tray clamps
- Heat-sealing heads
- Safety light screens
- Machine body: aluminum profile frame with safety enclosures
- Electrical control system
- Pneumatic components: Taiwan Airtac
- Temperature controller: Beiermei
- Buttons: Shanghai Ergong brand
- Touch screen: Weinview
- Safety light curtain: Fotek
- Machine body: surface pickling treatment, default baked white paint
- Mechanical parts material: aluminum and steel
- Safety cover: sheet metal parts + acrylic panels
3. Basic Parameters
|
Parameter |
Specification |
|
Machine Cycle Time |
7 pcs/s |
|
Sealing Width |
Customized (Standard: 4 mm) |
|
Applicable Battery Size |
55 × 45 cm (including airbag) |
|
Machine Capacity |
4–6 pcs/min |
|
Manual Adjustment |
Available |
|
Power Supply |
220V/AC/50Hz, Single Phase |
|
Air Pressure |
0.5–0.6 MPa |
|
Equipment Weight |
400 kg |
|
Machine Dimensions |
1400 mm (L) × 1200 mm (W) × 1400 mm (H) |
|
Top/Side Sealing Cylinder |
∮63 × 50 |

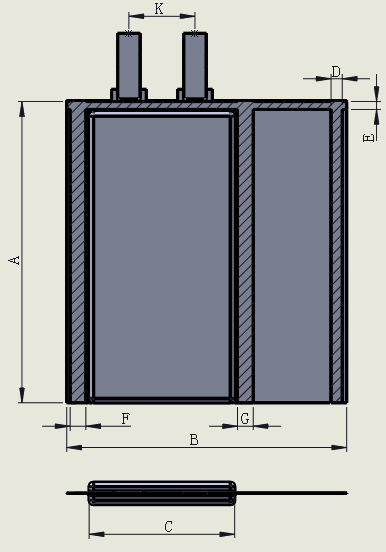

4. Process Parameters
|
A |
B |
C |
D |
E |
F |
G |
K |
|
|
|
|
|
|
|
|
|

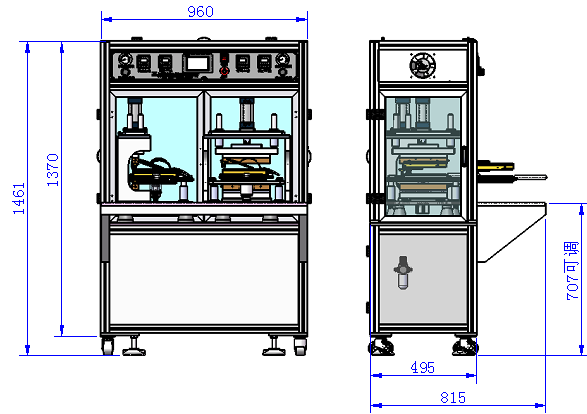

5. Appearance Layout

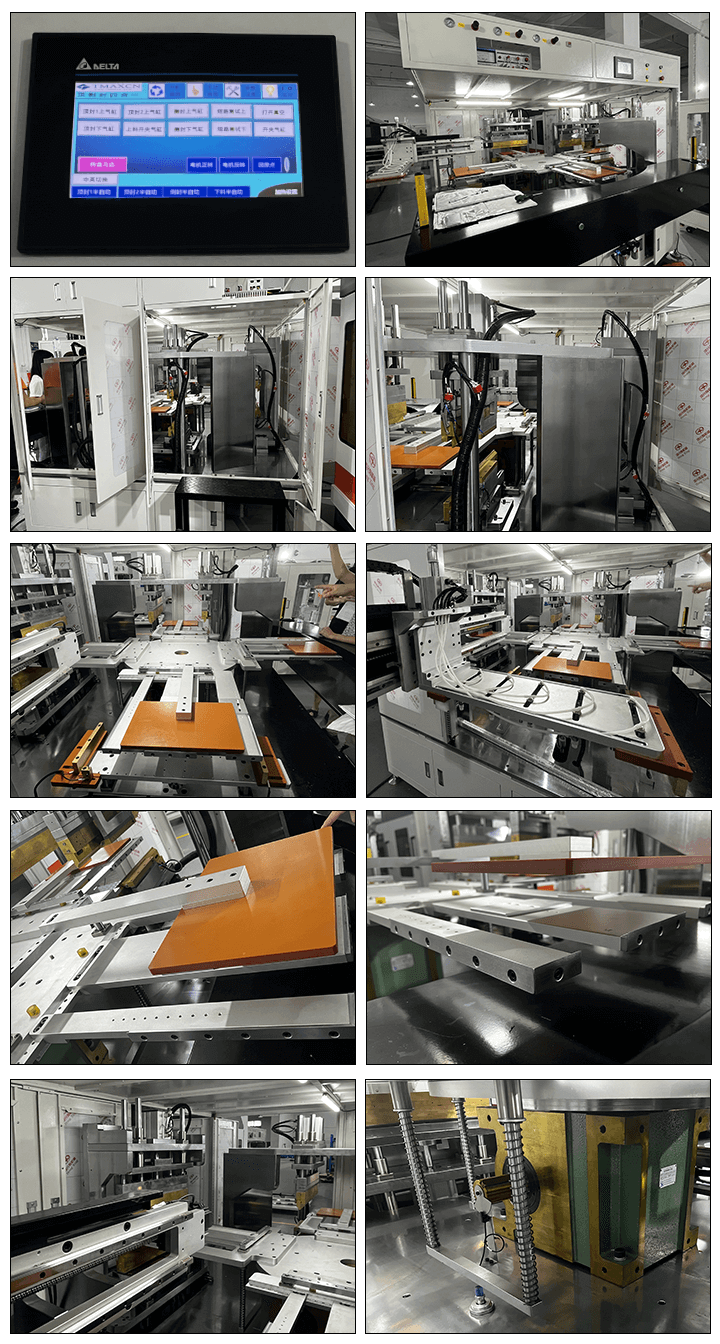

6. Product Photos
