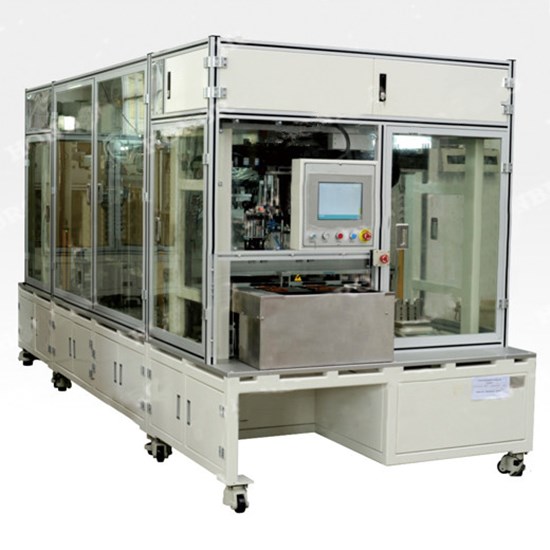

Automatic Electrolyte Filling Machine with Double Station for Pouch Cell Making

Functions

● The equipment is mainly used for pouch cell of lithium ion batteries assembly .It can achieve automatic vacuum electrolyte injection,diffusion&degassing , vacuum sealing, manual loading and unloading materials,etc.

Features

● Manual feeding, manual injection fluid first and then weighing, scan code.

● Automatic vacuum injection, diffusion&degassing, sealing.

● Injection pump and control box independent with equipment isolation convenient to adjust parameters, avoid pollution and corrosion.

● Head component structure adopts movable roller structure, convenient service, maintenance and dismantling.

● Equipment placed in drying room or common room, convenient install and dismounting transition part.

● Auto electrolyte-mixing system, remove air bubbles, prevent injected liquid drops.

● Injected electrolyte station using vacuum injection to ensure that the electrolyte instantly penetrate into the cell.

● Filler, static and pre-packaged merged into one station, smaller device convenient servicing and maintenance.

Technical Parameters(for reference)：

ITEM	Main parameters
measures	(L*W*H):1030*1200*2000MM
Weight	About 0.4T
Power	AC220V ±10% 50HZ/60HZ, 0.8KW
Air source	≧0.7Mpa,30L/S
Applicable range	H:40-170mm W:50-170mm T:2.5-12mm
Vacuum source	≧-95Kpa,80L/S
Capacity	4PPM
Action	≧98%
Liquid injected volume	0-50g
Liquid injected precision	≤±1%
