Automatic Electrode Winding Machine for Supercapacitor Assembly

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-XCJ-3270C
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    5 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

Automatic Electrode Winding Machine for Supercapacitor Assembly


This cylindrical battery cells automatic winding machine is equipped with manual feeding with cathode and anode electrode sheet, separator, and tapes. After completion the feeding, the cathode and anode electrode sheet, separator, tapes which used after winding, and protective tapes (protect the cell) are automatic winding according to predetermined product and process requirements. Detection, automatic tension control, automatic deviation correction, short circuit test and other functions. The equipment has a stable and reliable working state and process guarantee.


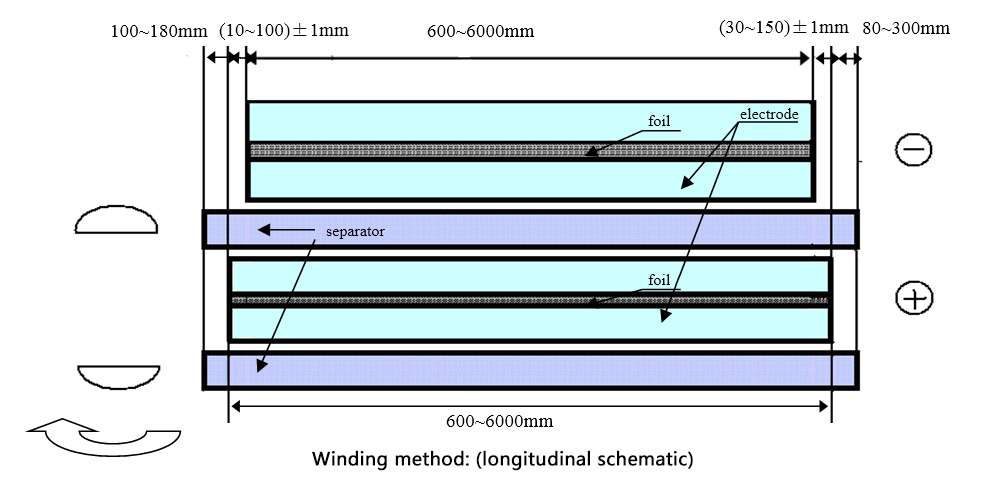

Process flow:

1. Separator feeding

2. Tape (tape which used after winding) and tape (protect the cell) feeding

3. Cathode and anode electrode feeding

4. Cathode and anode foil detection

5. Electrode (whole roll electrode) winding

6. Length and diameter control

7. Paste tape (tape which used after winding) and protective tape (protect the battery cell)

8. Short circuit test

9. Judgment of quality products


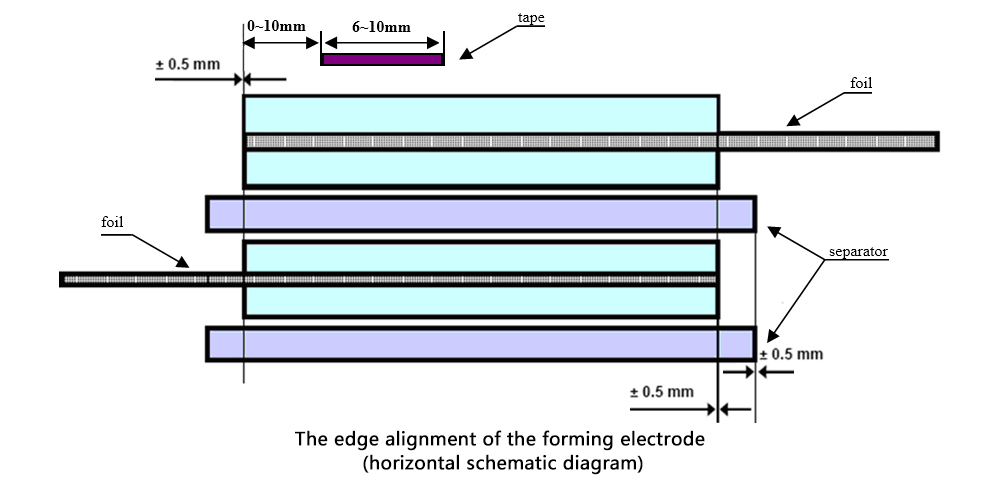

Material

Feeding method

Single pieces material length(mm)

Material Width(mm)

Material thickness(μm)

Maximum outer diameter(mm)

Inside diameter(mm)

Size range

Size range

Tolerance

Size range

Tolerance

Cathode electrode

Coil material

1000~6000

80-160

±0.1

100~320

±10

400

75.8

Anode electrode

Coil material

1000~6000

80-160

±0.1

100~320

±10

400

75.8

Separator

Coil material

80-160

±0.1

16~50

±4

350

75.8



Equipment working conditions:

1. Power supply: AC380V±10% /50Hz, 10KW, voltage fluctuation range: ±10%;

2. Compressed air:0.45-0.6Mpa; 100L/Min

3. Environment temperature:20-35℃;

4. Relative humidity:30-55%HR;

5. No corrosive gas, liquid, explosive gas on site,

6. Equipment dimensions and weight: 2500L X 1400W X 2000H (mm); Weight: 3000 Kg

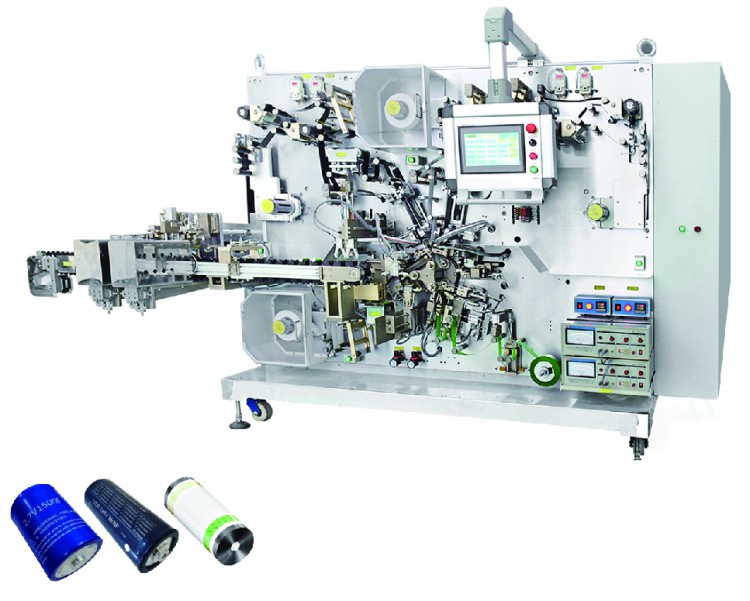

Automatic Winding Machine
