Tab Trimming Machine

Automatic Electrode Tab Punching and Trimming Machine for Prismatic Cells and Supercapacitors

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-CQ130

  • Payment:

    L/C,T/T,Western Union, Paypal

  • Product Origin:

    China

  • Shipping Port:

    Xiamen

  • Lead Time：

    5 days

  • Certificate:

    CE ROHS Certificate
Inquire Now
  • Product Detail

Automatic Electrode Tab Punching and Trimming Machine for Prismatic Cells and Supercapacitors



Application

The Tab Punching & Trimming Machine is designed for punching holes and trimming tabs on electrode tabs of prismatic cells and supercapacitors.



Key Features

  • Features precision guide pillars and bushings, which guarantee zero-clearance alignment between the upper and lower blades, thus extending service life.
  • Fitted with high-speed steel punch and shear blades, delivering sharp, neat cuts.
  • Comes with a positioning tray to ensure accurate placement of cells.
  • Controlled by a PLC system, enabling reliable, stable performance with user-friendly operation.
  • Boasts a color touchscreen LCD for intuitive operation and real-time parameter monitoring.
  • Constructed with a solid steel-welded frame, featuring a smooth surface and powder coating for a sleek appearance.
  • Incorporates a safety light curtain and protective doors to ensure safe operation.



Technical Specifications

Parameter

Specification

Tab Punch Hole Diameter

Ø6 mm (±0.05 mm precision; customizable upon request)

Production Capacity

3 pcs/min

Power Supply

220 V / 50 Hz

Power Consumption

500 W

Compressed Air Supply

0.5 – 0.7 MPa

Machine Dimensions (L × W × H)

650 × 500 × 1600 mm

Weight

Approx. 800 kg

Trim Distance from Punch Hole

Approx. 6–10 mm

Punch/Trim Position

Adjustable

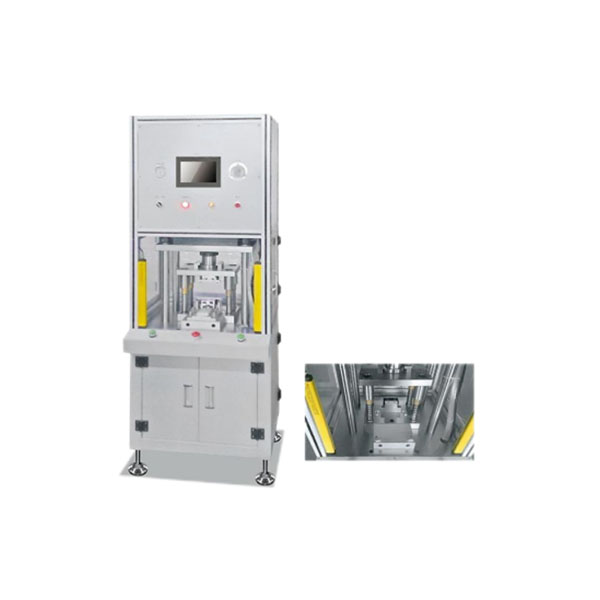

Tab Punching and Trimming Machine
