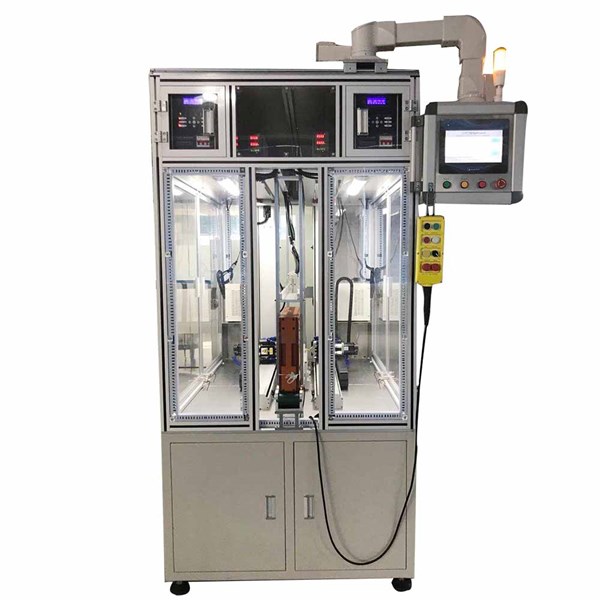

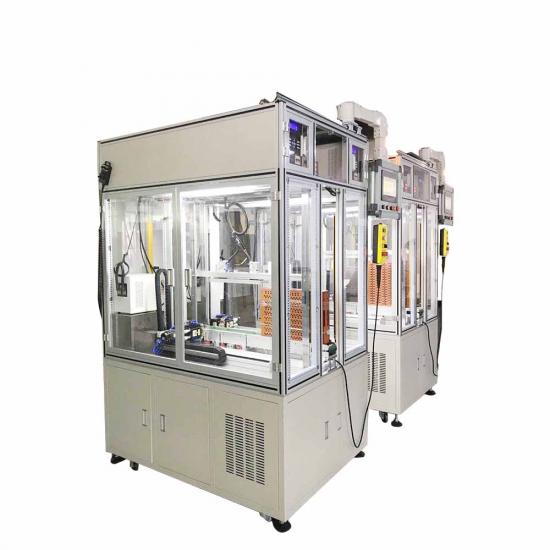

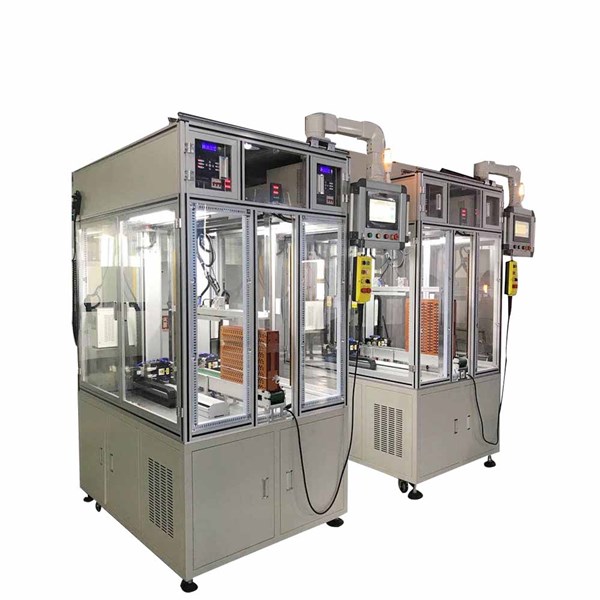

Automatic Double Sides Numerical Control Spot Welding Machine with 5000A/8000A DC Inverter Welding Power Supply

Equipment Introduction

It is suitable for electric vehicle battery pack, automobile battery module, street lamp battery, balance car battery pack, scooter battery pack, mobile power supply, startup battery pack module, power tool battery pack, notebook battery pack, etc!



Features

1. Support breakpoint start, support automatic start and manual start mode conversion.

2. Simple programming, support any point programming and array programming, can realize jump spot

welding, single point, double point mode fast switching, spot welding path optimization, improve efficiency, local disk can store 99 groups of programming files, USB interface can import graphics.

3. The spot welding head takes the center point of two welding pins as the circle center, and the angle is continuously adjustable, which is suitable for spot welding of various special-shaped split connection pieces.

4. The system is divided into operator, administrator, super user and so on. It is convenient to use, manage and maintain butt welding machine.

5. The inverter DC welding power supply has the advantages of stable performance, fast welding speed, constant current working mode and elimination of unstable factors of welding current for a long time.

6. With welding current monitoring system, it can monitor welding current in real time.

7. Spot welding power supply has the function of false welding alarm, which can directly communicate with the motion controller. It can record the false welding position and warn the replacement of welding pin.

8. The welding efficiency is about 8 times that of manual welding, high stability, labor saving and time cost saving.

Specifications

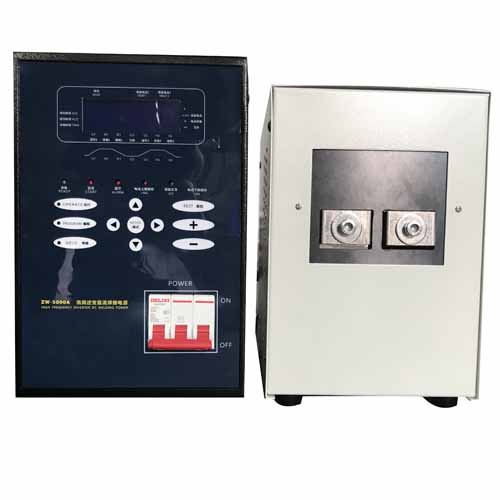

Technical parameters of welding power supply

Model	ZW-5000A
Input power(V)	3Phase AC380V 士 10% 50/60Hz
Output current(A)	5000A	No load voltage(V)	10.8
Control mode	Constant current control	Cooling mode	Forced air cooling
Welding conditions	8	weight(Kg)	30.3
External dimension (L×W×H)mm	450×190×285
Transformer size(L×W×H)mm	300×180×265
Function	0.15-0.25mm Nickel sheet welding
