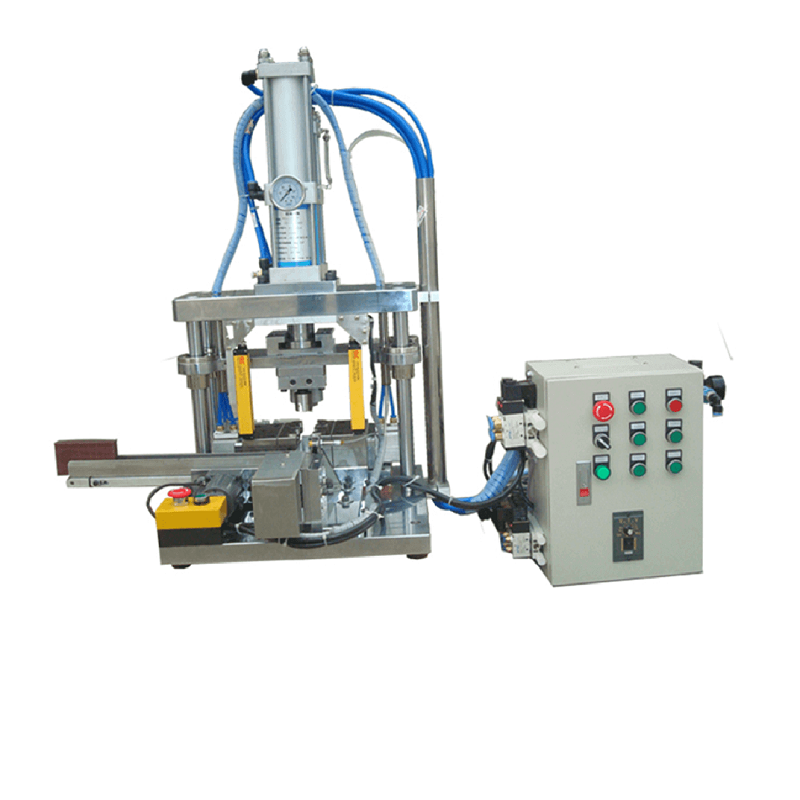

Automatic Cylindrical Battery Sealing Machine for Glove Box

1. Equipment description:

1.1 Equipment name: Automatic sealing machine for glove box

1.2 Product function: This equipment is specially developed for the sealing process of cylindrical batteries. It is a high-precision battery sealing equipment, mainly used for the sealing of cylindrical batteries. This machine has the functions of pre sealing, two sealing and three sealing at one time. Stable and reliable performance, high sealing efficiency, good product consistency, simple operation, easy maintenance, suitable for small production of batteries.

1.3 Working principle. The gas liquid booster cylinder is sealed, and the huge pressure generated will press the battery shell and cover to the size required by the process to achieve the purpose of battery sealing.

2. Basic configuration:

Yadeke cylinder, original of Yadeke Electric

Omron electric control system

SMC sensor

Oil resistant booster cylinder 5T

Omron power supply

Chint Electric

Safety light curtain protection device

3. Process parameters:

Sealing range: 14/18/21 type;

Sealing speed: 25-30 pcs/min, adjustable;

Working pressure: 3T;

Overall power: 250W 220V/50Hz;

Overall dimensions of equipment: 830 (L) * 430 (W) * 900 (H) MM;

Sealing steps: pre sealing, secondary sealing and tertiary sealing are completed at one time;

Sealing pressure and air tightness test can reach above 2Mpa;

Total weight of equipment: 250KG;

The working air pressure must reach above 0.4Mpa before the equipment can be effectively started, which is lower than 0. 4Mpa The equipment will automatically alarm and stop;

The upper and lower sealing dies are made of imported wear-resistant oil steel, and the processing hardness reaches HRC 60-62.;
