Item NO.:
TMAX-KZX60Payment:
L/C,T/T,Western Union, PaypalProduct Origin:
ChinaShipping Port:
XiamenLead Time：
5 daysCertificate:

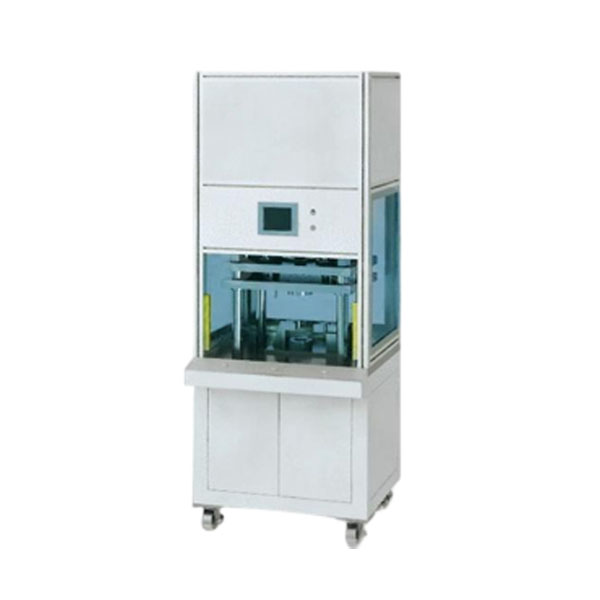

CE ROHS CertificateAutomatic Aluminum Can Forming Machine for Supercapacitor Shell Casings Processing
Application
The Supercapacitor Aluminum Can Forming Machine is designed for forming platform seating in aluminum shell casings of supercapacitors, facilitating the installation of end caps, sealing O rings, and insulating rings.
Incorporates a discharge mechanism, allowing for easy removal of formed aluminum cans.
The precision mold design guarantees accurate shell shaping.
Adopts a four-column structure and high-precision guide bushings, ensuring stable vertical pressing and superior accuracy.
Comes with PLC control and an HMI touchscreen, enabling smooth automation.
Constructed with a sturdy steel frame, along with safety light curtains and dual-button activation, for safe and dependable operation.
Boasts a compact, sleek structure, making it ideal for integration into production lines.
|
Parameter |
Specification |
|
Applicable Product |
Diameter Φ60 mm, Height 50–140 mm |
|
Utilization Rate |
98% |
|
Air Supply |
0.5–0.8 MPa (adjustable) |
|
Power Supply |
220 V / 50 Hz |
|
Power Consumption |
2 kW |
|
Machine Dimensions |
800 × 700 × 1700 mm (L × W × H) |
|
Weight |
500 kg (approx.) |
