Automatic 5 Channel Cylindrical Battery Sorting Machine With PC

Automatic 5 Channel Cylindrical Battery Sorting Machine With PC

Introduction

Battery sorting machine is for batteries testing before battery pack assembling.

Can test battery voltage and internal resistance, and sorting cells to different bracket with different voltage and internal resistance.

Advantage

1. Stable control system

2. High configuration regulator

3. High Precision Work Procedure

4. High cost performance ratio of products

Technological Process

The battery resistance and voltage are set by the battery testing software of the upper computer, and the following functions are automatically completed by PLC:

Manual filling of batteries→wave wheel rotating feeding→belt carrying

batteries→ejector cylinder jacking batteries→ test cylinder closure (test instrument uploading data, software sorting)→mechanical gripper sorting batteries.

The equipment is equipped with acoustooptic alarm, which can be sorted to complete automatic shutdown. Full material alarm, fault alarm, etc. Operating parameters can be set according to the actual requirements of customers.

Structureof Sorter:

1) The equipment has compact and reasonable structure, beautiful appearance and small space occupation.

2) The equipment is simple to operate, and no professional training is required. The workers can easily master it.

3) The equipment is controlled by PLC + PC. PLC is responsible for battery feeding,

transporting  and  collecting.  PC  is  responsible  for  data  acquisition  of battery  test

instruments, voltage resistance classification, easy operation, high efficiency, labor saving and good product performance.

4) The equipment is made of high-quality thick cold-rolled sheet metal and aluminium profile frame.

5) The equipment is equipped with universal movable casters, which can move easily when shifting.

Specifications:

Application

Battery sorting machine is for batteries testing before battery pack assembling.

Can test battery voltage and internal resistance, and sorting cells to different bracket with different voltage and internal resistance.

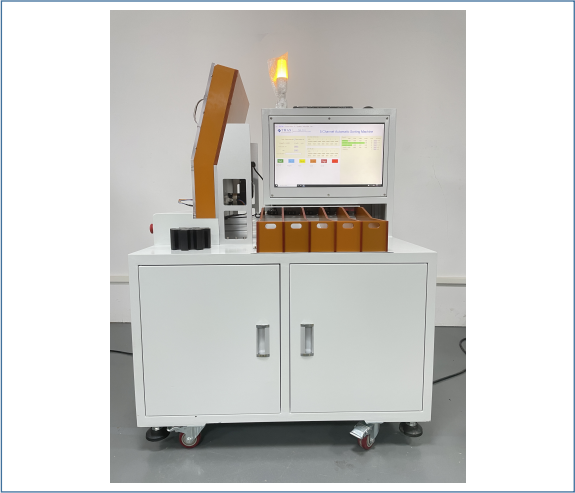

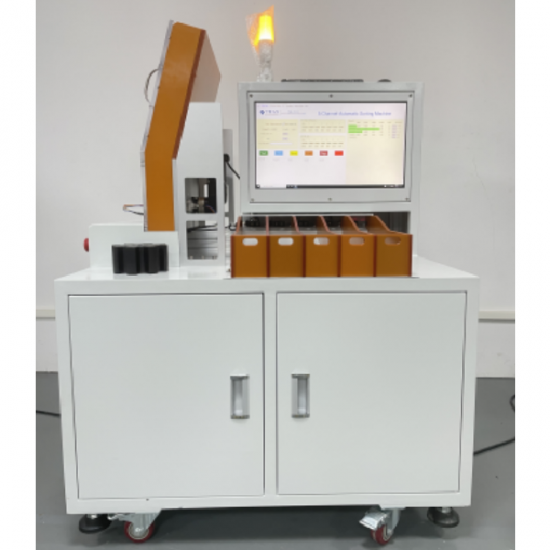

Product Picture
