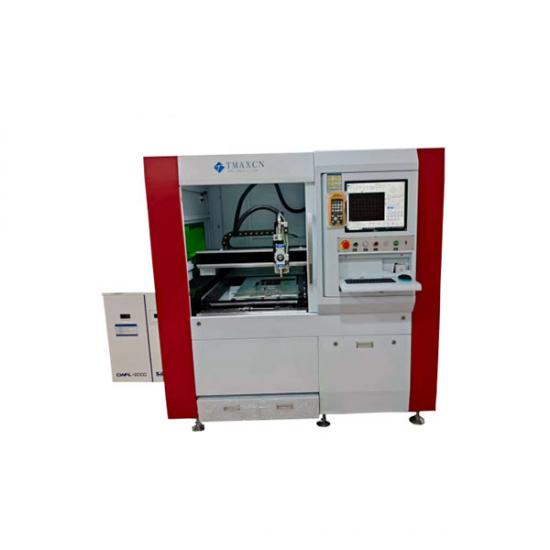

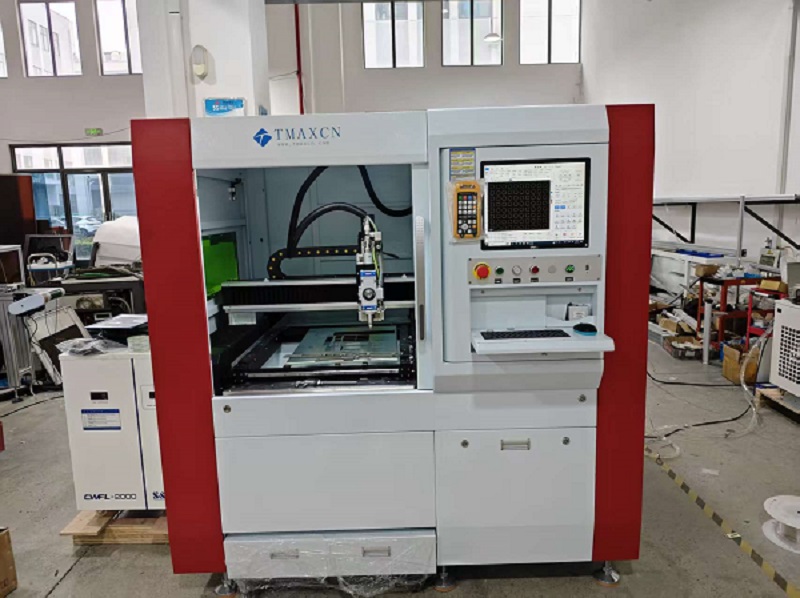

Automatic 2000W Continuous Fiber Laser Cutting Machine

Automatic 2000W Continuous Fiber Laser Cutting Machine

Fiber optic cutting machine configuration：

Configuration and Model	TMAX-HY-C2000W-6060	Notes
Laser system	2000W continuous laser	Ruike
cutting head	Capacitive induction special cutting head	Wan Shunxing
Numerical Control System	Specialized cutting software system	TMAX
Auto-focus	Capacitive induction automatic height adjuster	TMAX
refrigeration system	2000w standard dual temperature and dual control water tank	TMAX customization
Z-axis module	Screw module 50mm	TMAX
servo motor	Hechuan servo	Domestic
Grating reader	Resolution of 0.5 μ m	TMAX
Driver	CDHD-4D52AEC2	TMAX
computer	IPC	TMAX
Smoke collection system	Top mounted air inlet, independent suction port for the receiving box/matching purification system	TMAX
Marble base	1250*1800*120mm	TMAX
Cabinet	Sheet metal integrated cabinet (side sliding door)	TMAX

Technical Parameter：

Model	TMAX-HY- C2000W-6060
Maximum laser power	2000W
cutting range	600*600mm（effective）
positioning accuracy	±0.05mm
repeatability	±0.005mm
Speed of rail movement	≤40m/min
Minimum line width	≤0.03mm
Processing dimensional accuracy	±0.05mm
Host size	1250*1800mm
Cutting pressure requirements	≤1.6MPa
Cooling method	water-cooling
working voltage	220V
Whole machine weight	1.8T
Power consumption	7KW
Cutting thickness	≤5mm（stainless steel）

Equipment introduction

1: This machine is mainly designed for high-speed laser processing of thin plates, with stable operation, mature technology, and high cutting efficiency

2: The device host has good rigidity and high strength. The base is made of Jinan green marble, and the crossbeam is made of extruded aluminum profiles, which have good acceleration performance and effectively prevent structural deformation,

3: Control part: An open motion control platform that integrates motion control, PLC, and HMI, which can be effectively applied to various laser processing. The EtherCAT bus based front-end control system greatly improves the flexibility and scalability of the equipment

Equipment working environment requirements:

Working environment temperature -10~45 ℃, relative humidity<90%, no condensation, surrounding environment: ventilated, no significant vibration, power supply voltage 380 ± 5%

The overall power of the machine is 5KW

Warranty and after-sales service: One year warranty for the entire machine and two years warranty for the laser; The response time for maintenance services is within 24 hours.

Equipment operating environment temperature: recommended 0 ℃ -40 ℃ ; Laser must not condense; Keep the cooling water clean; Reliable grounding.

Accessories：

Name	Quantity	Notes
instructions	1 copy	gift
Protective lenses	5 pieces	gift
spray nozzle	5 pieces	gift
Allen key	1 set	gift
Specialized mirror Wiping paper	1 book	gift

INSTALLATION REQUIREMENTS：

1. On site distribution cabinet: 220V, 50Hz, three-phase four wire, capacity not less than 40 KVA, with short-circuit protection, etc.

2. The device should be equipped with a dedicated grounding, with a grounding resistance not exceeding 4 Ω.

3. Provide necessary lifting equipment and personnel.

4. Provide materials such as steel plates required for on-site equipment debugging. .

5. Provide temporary access cards for debugging personnel.

6. The auxiliary conditions required for the normal operation of laser cutting equipment:

6.1 Cutting auxiliary gases (N2, O2);

6.2 Water free and oil-free compressed air or nitrogen supply system.

7. Equipment space and foundation requirements: The foundation is made of concrete with a minimum thickness of 200 mm; there are no seismic sources or shock-absorbing grooves around the foundation.
