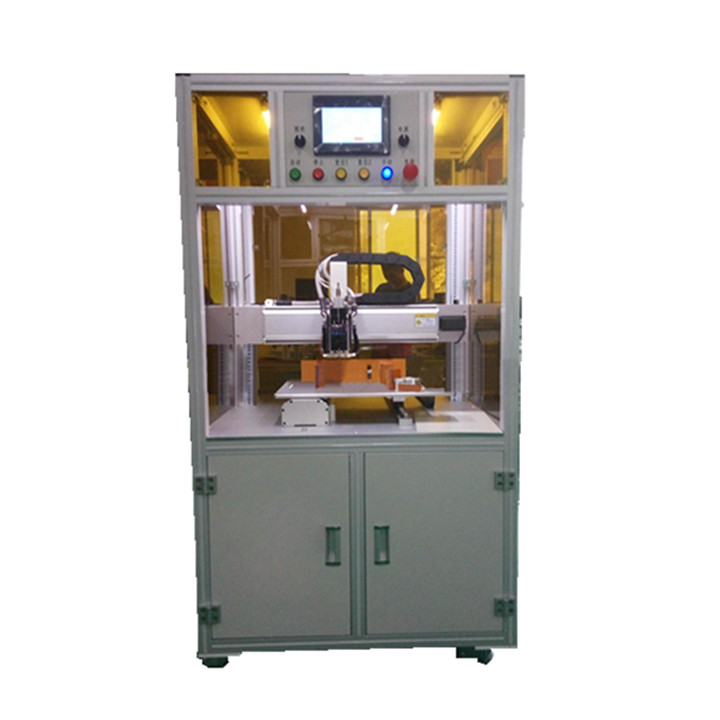

Automatic 18650 Cell Pack Single Side Welder Welding Machine For Battery Pack Assembly

This equipment is mainly used for single-side and double-spot welding of batteries and nickel-plated steel strips or nickel strips in cylindrical/polymer battery assembly, and ensures that the welding tension between batteries and nickel-plated steel strips or nickel strips is greater than 30N. The spot welding range of the equipment can meet the welding requirements of 18650 batteries with 20 series battery packs and less than 20 series battery packs. The number of welding batteries is determined by the stroke, which can be set by man-machine.



Power Supply and Voltage for Equipment	AC 220±10%，50HZ±2HZ, 500W
Welding Power Supply and Voltage	AC380V±10%，50HZ±2HZ，2000W
Welding Material	Pure nickel sheet: 0.03-0.2mm Nickel-plated steel strip :0.03-0.3mm (bump welding can weld 0.6mm)
Driving mode	TBI screw + Taiwan silver precision linear guide
Rotation Function of Welding Head	The welding head supports positive and negative rotation, and is suitable for spot welding of special-shaped batteries and anti-sticking needle function.
Maximum Spot Welding Speed	0.5S/point；1800pcs/h
Maximum Load-bearing Weight	30KG
Maximum Stroke Size Range	X：500mm，Y：400 mm，Z：35mm，R：180º The distance between tooling platform and welding needle can be adjusted by 300 mm.
Welding Pressure	The pressure of the two welding needles can be adjusted independently. The pressure is stable, reliable and easy to adjust. The welding tension between the battery shell and the connecting piece is ensured to be more than 30N.
Welding Position	Cylindrical and top plane position of battery
Welding Process	Small spark spatter, no burr, no color change, beautiful welding, stable performance, no damage to the battery appearance;

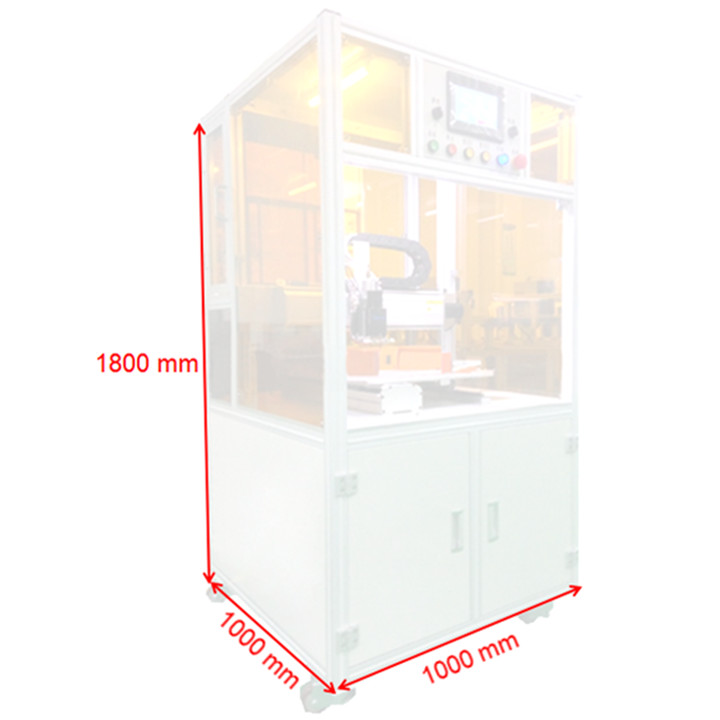

Dimension	900L×900W×1600Hmm
Weight	250Kg
Power Cord	220V  10A
Pneumatic Connected Tube	Diameter 8 mm, easy to plug interface, air pressure 0.4 MPa
