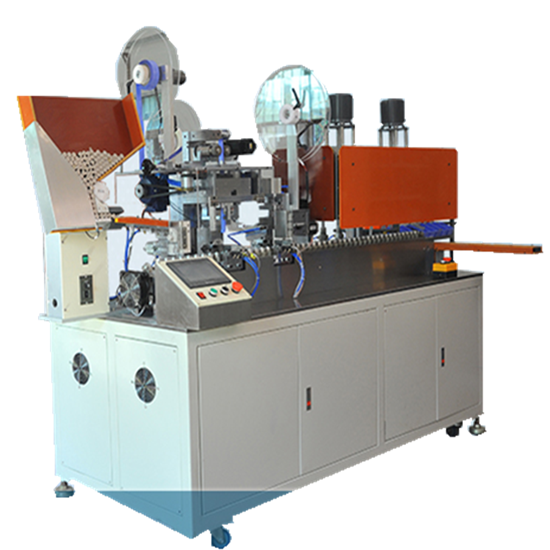

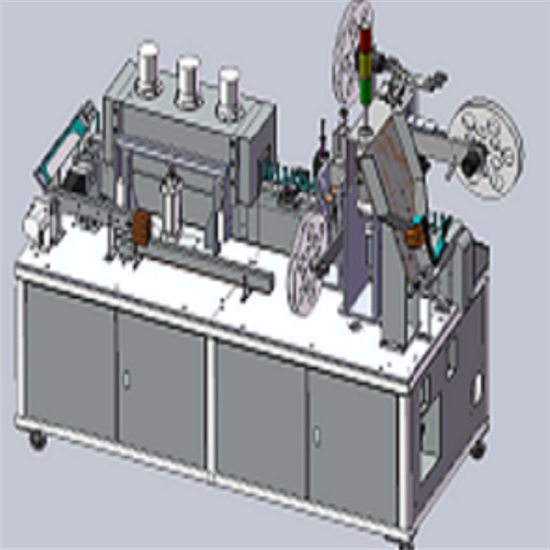

Automatic 18650 26650 32650 21700 PVC Heat Shrink Wrap Machine For Cylindrical Battery Pack

FEATURE

1. High efficiency: the film efficiency is 50~70PCS/MIN. It is 6~10 times of artificial efficiency;

2. High precision: the precision servo motor and high-precision mechanical structure make the film precision up to ±0.1MM, and the technology is leading the industry;

3. Highly intelligent: the humanized operation interface is convenient for manual operation, the fault is automatically alarmed, and the fault point is clear at a glance;

4. Simple operation and maintenance: the personnel can operate the equipment with a little training, and the maintenance is relatively simple;

5. High flexibility of equipment: After replacing the fixture and mold, it can be adapted to cylindrical batteries such as AA, AAA and 18650.

SPECIFICATION

Model	Tmax-Shrinking
Specification	AA,AAA,18650
Film speed	50~70PCS/MIN
Film precision	±0.1MM
Power supply	380V/220V
Air pressure	0.5~0.7Mpa
Power	9KW
Weight	800KG
Machine size	2100(L)*950(W)*1600(H)
Casing requirements	The width of the coil is 29.7±0.2mm, and the thickness of the single layer is 0.08±0.01mm.
Insulation sheet coil size	width between 20 ± 0.1mm (no material break and tape interface in the middle of the coil)
Insulation sheet die size	Outer diameter 17.4 ± 0.1 mm; inner diameter 10.5 ± 0.1 mm; inner and outer diameter concentricity ± 0.10 mm
Heat shrinkable bottom edge size	2.5mm ± 0.3mm (size error is related to casing material and baking conditions)
