TMAX-HZ-ZD01-Low-Temperature Pulsed Thermal Evaporator

---

Product Overview

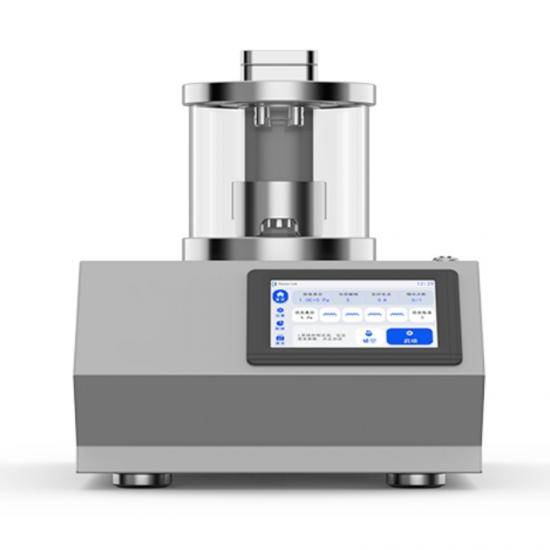

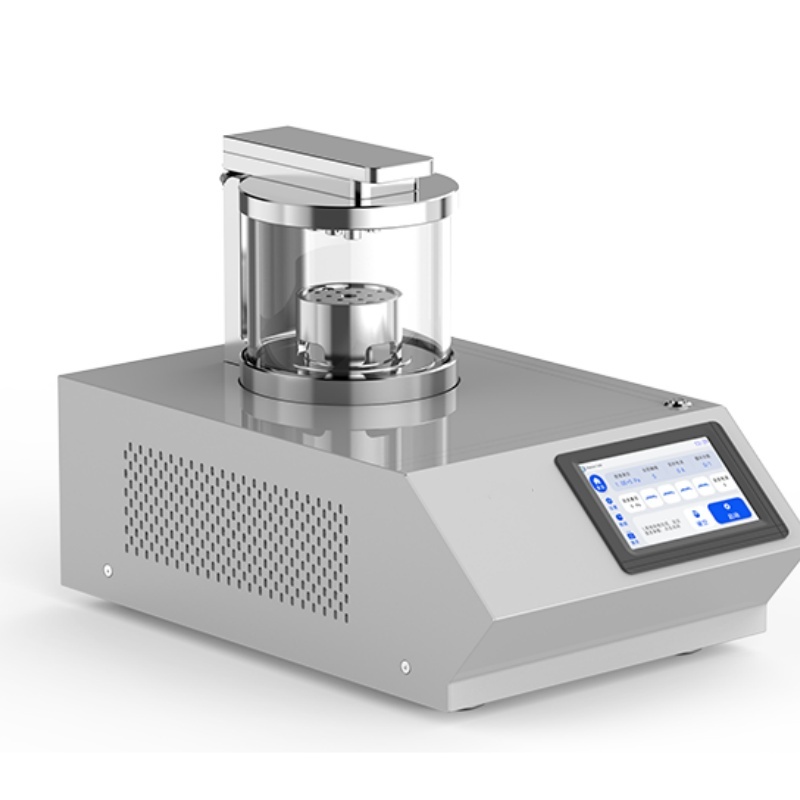

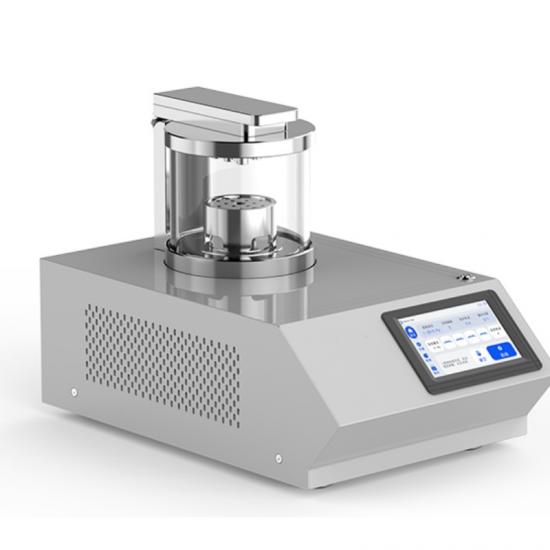

The TMAX-HZ-ZD01 Pulsed Carbon Coater is an advanced, fully automated instrument designed for high-quality carbon coating of samples in material science and biological research. Featuring a compact design, intelligent ARM-based control, and pulse evaporation technology, it ensures efficient, precise, and low-thermal-damage coating—ideal for high-resolution SEM analysis.

Key Features & Advantages

1. Ultra-Compact Design

·Dimensions: 530×300×320 mm, optimized for space-constrained labs.

2. High-Efficiency Pulse Evaporation

·W-type planar carbon source with pre-degassing function minimizes thermal impact on sensitive samples (e.g., polymers, membranes, fibers).

·Nanoscale coating (<5 nm) ensures dense, uniform films for high-resolution SEM imaging.

3. Fully Automated Operation

·5-inch touchscreen with intuitive interface (supports bilingual display).

·One-click start and ARM-based precision control (adjustable in 1 mA/1 Pa/1 s increments).

4. Multi-Sample Capacity

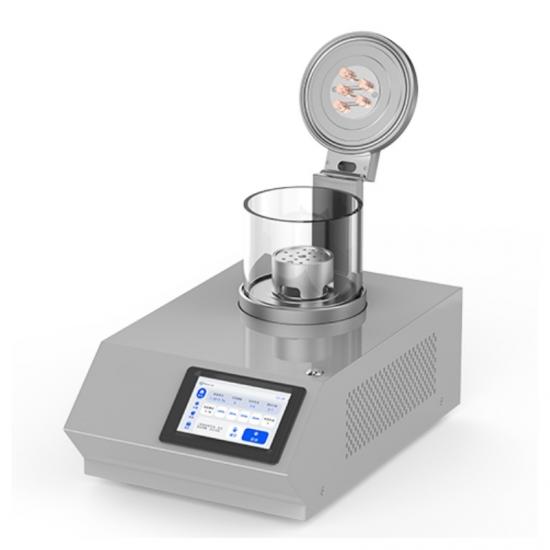

·Holds 12 standard stub samples simultaneously, reducing manual intervention.

5. Reliable Vacuum System

·Achieves <1 Pa ultimate vacuum via rotary vane pump; real-time monitoring with a Pirani gauge.

6. Versatile Carbon Sources

·Compatible with 0.8/1.2/2.4 mm carbon ropes or rods, detectable for continuity.

7. Safety & Stability

·Dual current/vacuum protection and sensor-monitored operation ensure long-term reliability.

Technical Specifications

Applications

This excels in preparing temperature-sensitive samples (e.g., organic polymers, biological tissues, electrodes) and delivers nanoscale coatings critical for:

· SEM/EDS analysis

· Conductivity enhancement

· Nanomaterial research

Installation & Usage Highlights

1. Quick Setup: Connect power/gas (optional); system self-checks upon startup.

2. Sample Loading: Adjust sample-to-source distance (~20 mm optimal).

3. Automated Process: Set parameters (vacuum/time/voltage) → Start → Automatic venting post-coating.

4. Maintenance: Tool-free carbon rope replacement; vacuum pump oil refill included.
