5V2A 256 Channel Cylindrical Lithium Battery Tester

Wechat:17720812054

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Item NO.:

    TMAX-BT0502-256-C
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Lead Time:

    5 days
  • Certificate:

    CE ROHS Certificate
  • Product Detail

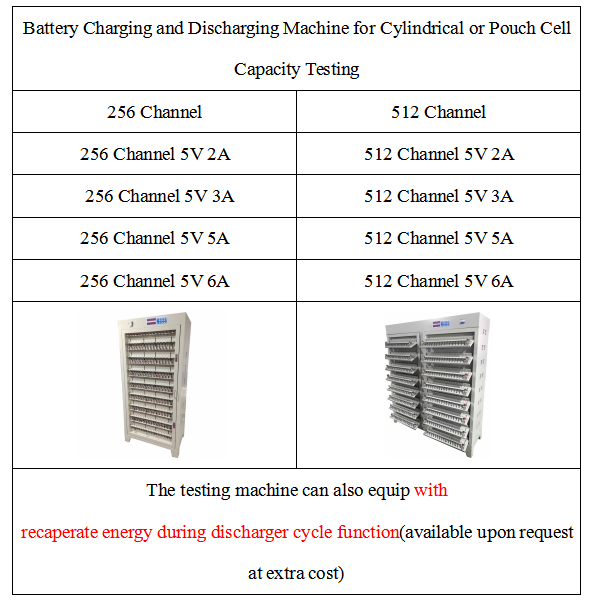

5V2A 256 Channel Cylindrical Lithium Battery Tester


FEATURE

This equipment is mainly composed of the computer system, communication interface, control software, and battery detecting cabinet. Battery detecting cabinet comprises a fixture and placed the plate body of the fixture, charging, constant current and constant voltage source discharge constant current source, storage control circuit, current sampling circuit, voltage sampling circuit, the main control CPU, data memory, microcontroller programming and control panel.

SPECIFICATION

Number of device channels

The whole machine has 256 channels in total

Workflow control mode

Whole cabinet control

Charging mode

Constant current and constant voltage

Charging cut-off conditions

Voltage, current, time, capacity

Discharge mode

Constant current

Discharge cut-off conditions

Voltage, time and capacity

Sampling inspection cycle

≤10s

Voltage measurement range

0~5V

Resolution: 1mV

Battery voltage range

Charge0~4.5V

Discharge4.5~2.5V

Constant voltage range

3~4.5V

Voltage accuracy

±0.05%RD+0.1%FS

Current range

Charge0.010-2A

Discharge0.010-2A

Resolution: 1mA

Current accuracy

±0.1%RD+0.1%FS

Time frame

Any setting within 0 ~ 30000 minutes, the time unit is min

Time accuracy

≤±0.1%

Fixture type

Four wire fixture

Fixture adjustable height

10mm-90mm

Support battery

Prismatic cell/cylindrical battery

Working power supply

AC380V±10%50HZ,

Power consumption: 4.5KW(three-phase four wire system)

Communication mode

RS485Baud rate 57600

Overall dimension

720mmL×500mmW×1840mmH

work environment

Temperature0-40℃relative temperature≤85%

Full load operating current

The maximum phase line15A,

The maximum zero line3A

Equipment starting current

The closing moment of air switch is about 60A

Machine weight

About 100KG
