50T Laboratory Small Rubber Flat Vulcanizing Press Equipment

Item NO.:
TMAX-ZB-910B
Payment:
L/C,T/T,Western Union, Paypal
Product Origin:
China
Shipping Port:
Xiamen
Lead Time：
5 days
Certificate:
CE ROHS Certificate

Inquire Now

Product Detail

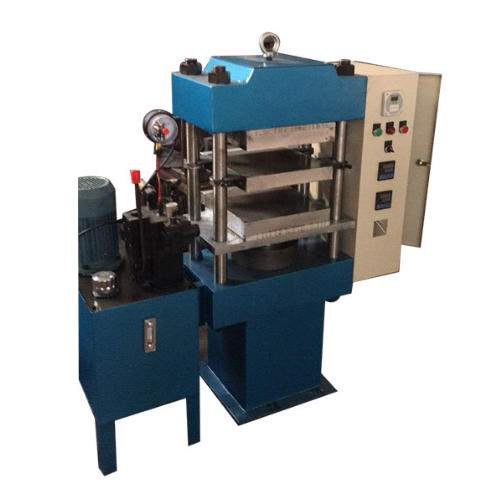

50T Laboratory Small Rubber Flat Vulcanizing Press Equipment

Introduction

1. The 50-ton pressure forming machine is a relatively advanced pressure forming equipment, used for the vulcanization of various rubber products and the pressing of bakelite and plastic products. The semi-machine has the advantages of compact structure and convenient operation.

The electric heating is controlled and displayed by the T-2301 temperature indicator and regulator, featuring high control accuracy, intuitive temperature display and convenient adjustment.

The steam heating type adopts metal hoses, which have good sealing performance, long service life and high reliability.

2. The parallel oil supply method of low-pressure high-flow gear pumps and high-pressure low-flow gear pumps is adopted, which not only ensures the rapid heating of the hot plate but also saves electricity.

3. The adoption of an automatic pressure replenishment device ensures the stability of the product quality.

Main Technical parameters

Maximum clamping pressure	0.5MN (50 tons)
Pressure of the hydraulic system	16MPa
Maximum stroke of the plunger	200mm
Ascending speed of the plunger	16.5mm/s
Heating plate size	400X400mm
Number of hot plates	3 (can be increased as required)
Distance between the hot plates	100mm (can be enlarged as required
Total power of the electric heating	7.2Kw
Heating steam pressure	0.6-0.8MPa
Temperature of the hot plate	0-300 degrees
Net weight	Approximately 1200 kg
Motor power	3KW, 1440r/min
Dimensions	L1450XW650XH1620mm
