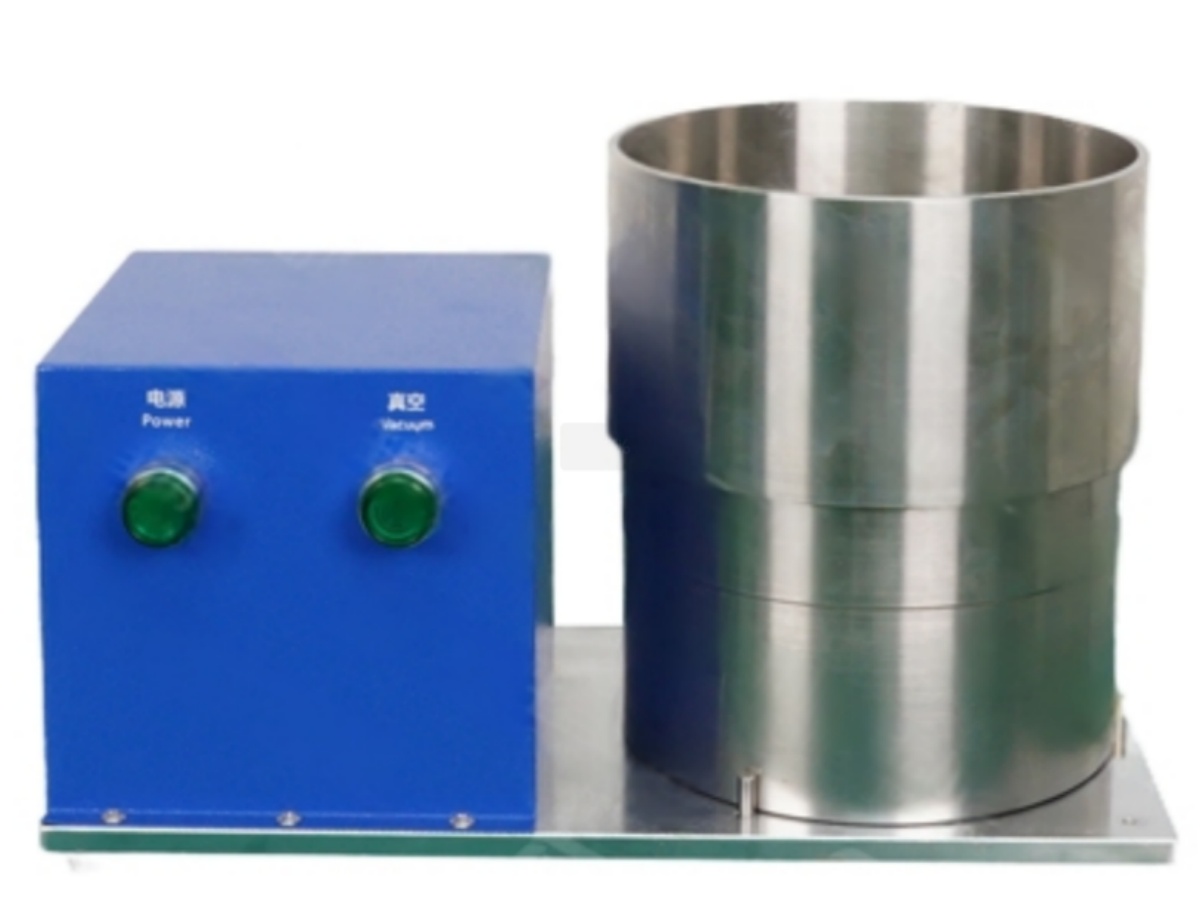

500mL Compact Battery Electrode Slurry Filtration System

Product Description

This filtration device is primarily used for laboratory-scale nano-level slurry filtration. It features an aesthetically pleasing design and offers flexible and convenient operation. This machine is specifically designed for laboratory research on various battery types, including coin cells, pouch cells, cylindrical cells, and other battery formats, making it highly versatile for battery development and testing.

Features & Functions

· High filtration precision, reaching up to 124 microns, equipped with filtration meshes for both cathode and anode particles.

· Full SUS304 stainless steel construction, ensuring excellent corrosion resistance and easy cleaning.

· Large filtration area, minimizing pressure loss and enhancing durability.

· Compact size for easy operation.

· Elegant appearance, easy maintenance, and durable structure.

Technical Specifications

Parameter	Specification
Filter Dimensions	145 × 150 × 200mm
Air Generator Dimensions	140 × 70 × 150mm
Power Adapter	AC 220V ±10% 50Hz(customizable)
Absolute Vacuum Level	65KPa
Air Pump Flow Rate	3L/min
Standard Filter Mesh	80, 100, 150 mesh
Optional Filter Mesh	Up to 1000 mesh
Capacity	500ml (customizable)
