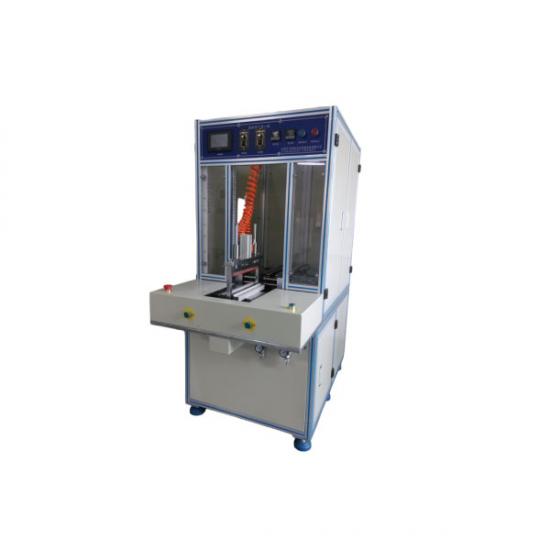

3-in-1 Automatic Pouch Cell Trimming Folding and Ironing Machine (Model 400)

3-in-1 Automatic Pouch Cell Trimming Folding and Ironing Machine (Model 400)

I. Equipment Action Principle

The cutting, folding, and ironing all-in-one machine is a device that integrates three processes: cell trimming, edge folding, and edge ironing.
Operating principle: This equipment comprises five mechanisms: the cell correction and positioning mechanism, trimming mechanism, edge-folding mechanism, edge-ironing mechanism, and robotic automatic pick-and-place device. After manual loading and cell correction/positioning, the operator presses the dual start buttons with both hands to activate the equipment. The cell then undergoes trimming, edge folding, and edge ironing in sequence. Once the ironing process is finished, the ironing mechanism opens, and the cell fixture returns to its original position. The cell is then manually removed.

II. Applicable Cells

Cell length: 20~~375 mm

Cell width: 15~~155 mm

Cell thickness: 5~15 mm

III. Equipment Diagram

IV. Equipment Operating Environment

1. Ambient temperature: 10~40 ℃

2. Relative humidity: 20~90 %

3. The gas supply must be a non-corrosive gas or liquid, and non-explosive gases.

Ⅴ. Equipment Feature

1. Supports both single and double folding operations.

2. Cutting knives rotate synchronously in opposite directions, ensuring high trimming accuracy; knife life exceeds 1.5 million cycles.

3. All four main mechanisms can be adjusted simultaneously for in‑and‑out motion, providing flexible operation.

4. Multiple products can be loaded at once, enhancing production efficiency.

5. Manual and automatic modes are available.

6. Position adjustments for each mechanism are guided by linear slide rails.

7. Folding wheels are made of tool steel, offering excellent wear resistance.

The cutting knife and fixture operating speeds, as well as the edge‑heating temperature, are all adjustable.

Ⅵ. Technical Parameters

Ⅶ. Consumables Configuration

One set of cutting knives is provided, and one set of hex wrenches is included.
